Home > Our Product > Vehicle loop detector > Single channel loop detector > Vehicle loop detector
Features/Benefits Specifications Project Download
  • Four step selectable frequency(20-80KHz)
  • Slef-tuning rang: 20-2000uH
  • Sensitivity: 16 levels are adjustable
  • Response time: 10-90 ms
  • Connection: 11-pin submarginal type (86cp 1)
  • Relay output: 2 relays, users configurable as presences or pulse output, normally open(N/ON) contact.

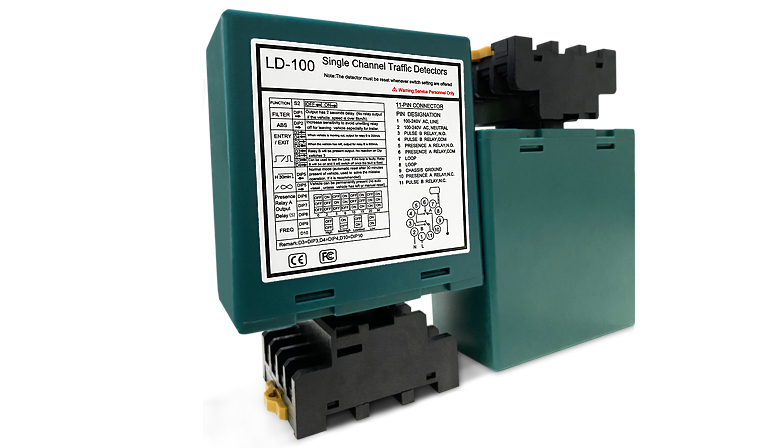

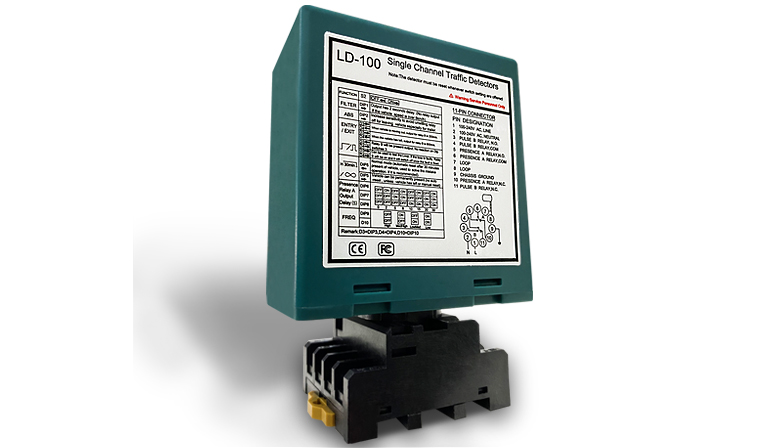

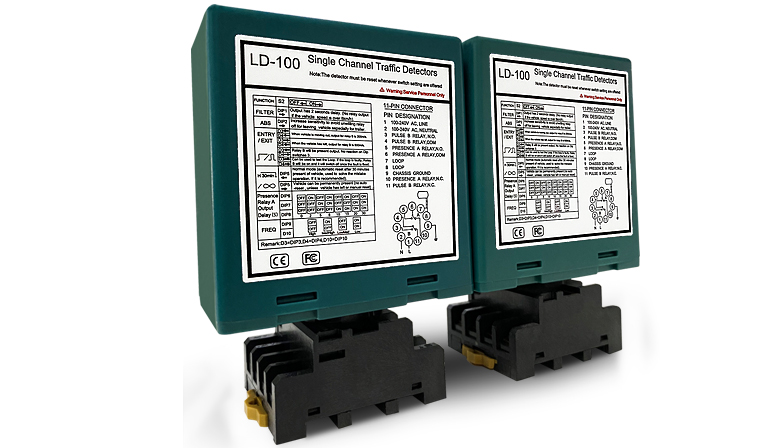

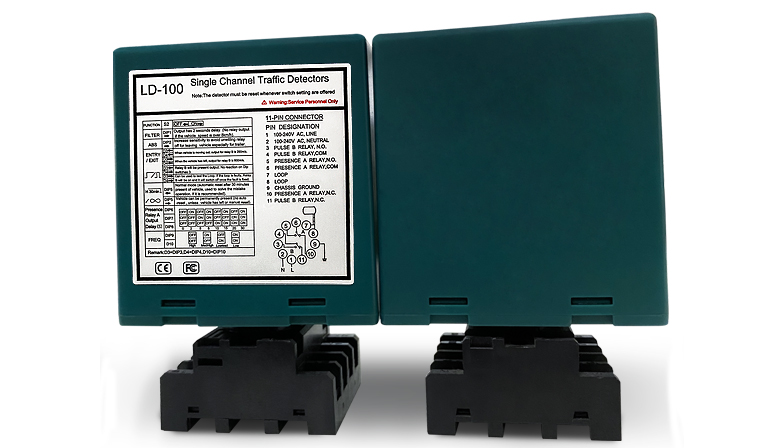

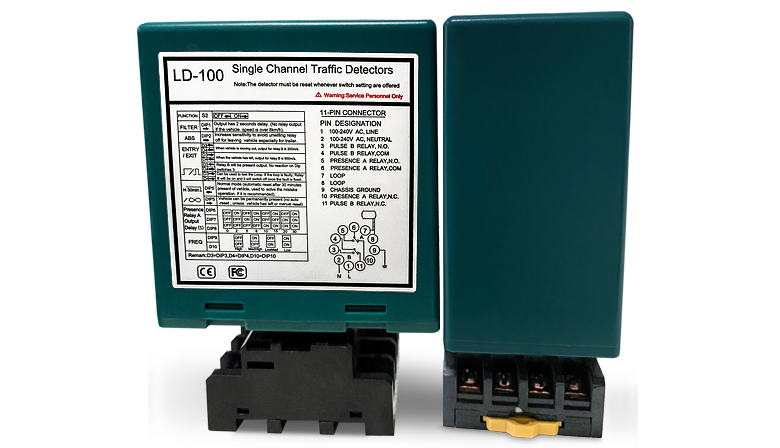

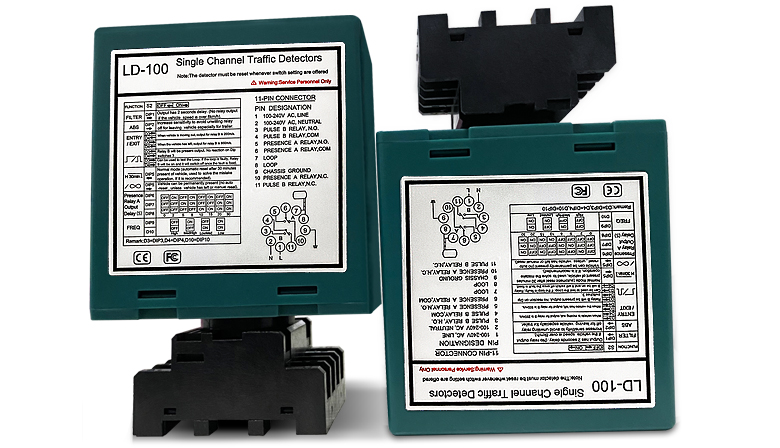

Model: NBLD100
Self-turning range: 20-2000uh
Voltage: 12-24VDC or 85-240VAC
Relay output: presence relay/fault relay
Working temperature: -40℃ - +70℃
Frequency: 4 steps switch, 20-80KHz
Response time: turn on 10-90MS, turn off 10-90NS
Reset: reset by push button on front of enclosure
Humidity: up to 95% relative humdiity without consideration
Sensitivity: 16 ways selectable, highest: 0.010% DL/L, Lowest: 2.56% DL/L
Loop wire: more than 10 meters requires the use of a 2 core shielded cable, do not exceed 30 meters distance between control box and loop
Size: 75mm*43mm*110mm
