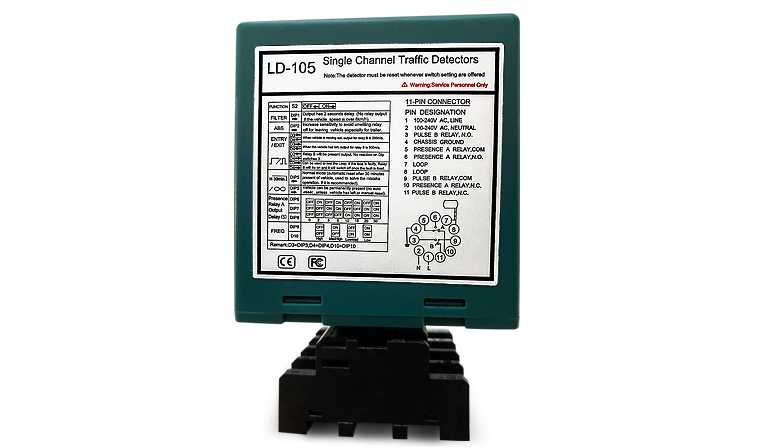

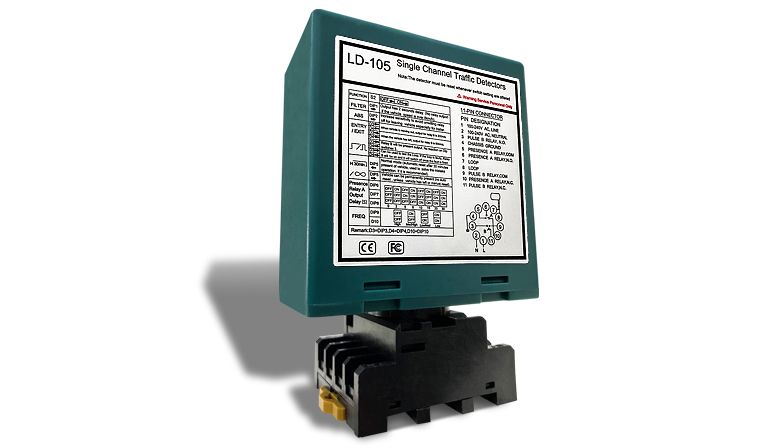

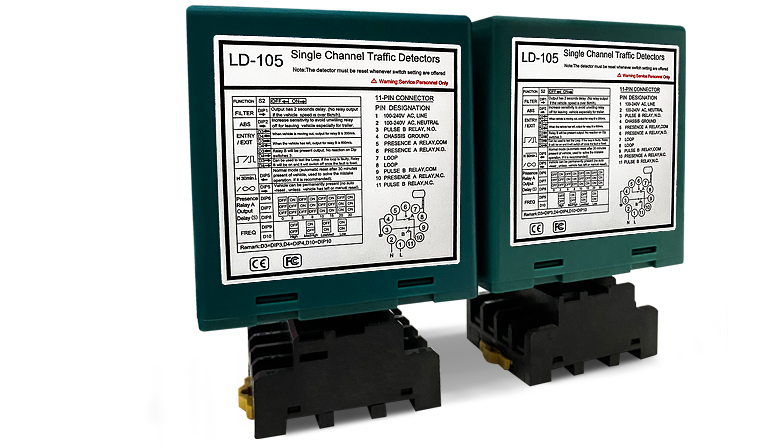

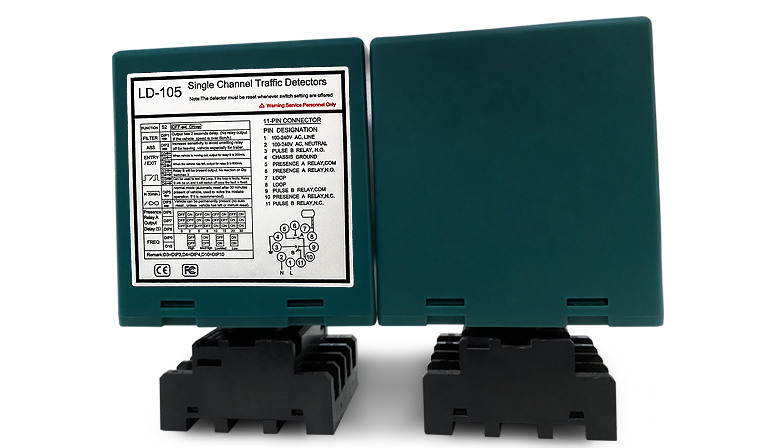

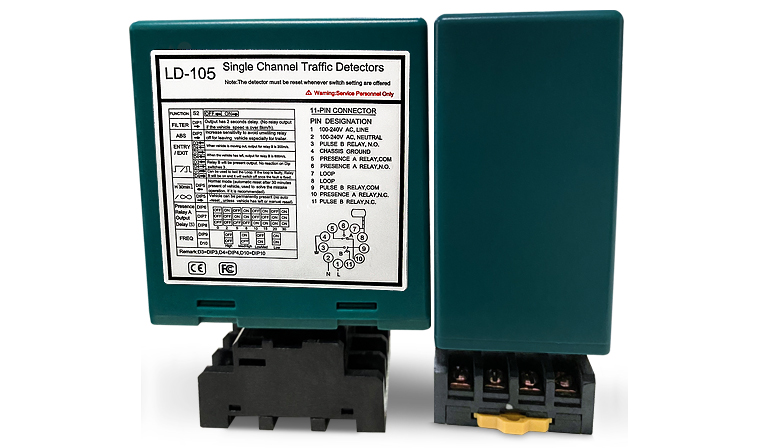

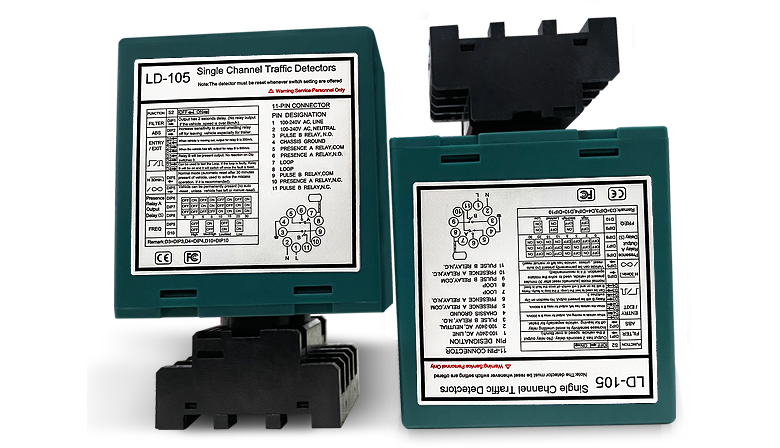

USA standard vehicle loop detector
(2 years warranty for loop detector)
Features/Benefits
Specifications

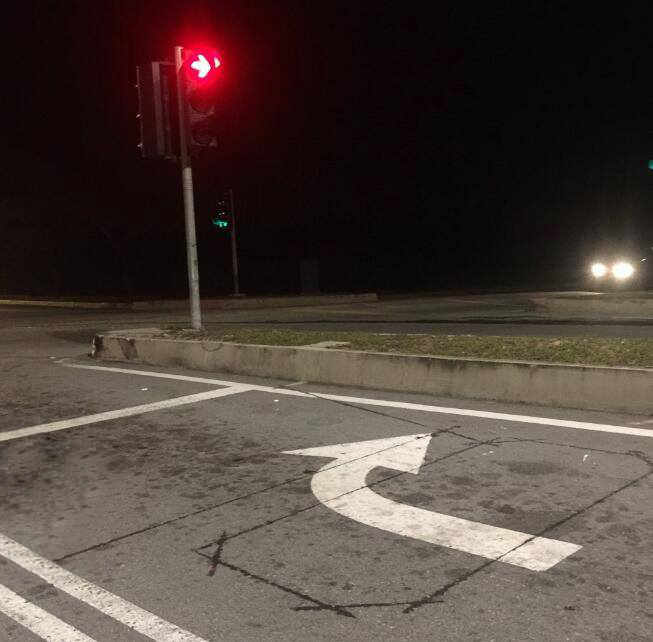

Project
Download
1. Compact Size: the compact and well engineered housing combined with all the industry requirements regarding features and functionality allows this detector to be incorporated into any new or existing vehicle detection system.
2. Diagnostic Capabilities: Comprehensive diagnostics capabilities allow for accurate diagnosis of loop and installation problems.
3. Selectable Presence Time: The output of the presence relay can be selected to limit a detect output to a fixed time(time>30 minutes) while a vehicle remains on the loop.
4. Sensitivity setting: The 16 sensitivity settings allow for finer adjustment of the detection level
5. Frequency setting: The 4 frequency settings provide greater flexibility in preventing crosstalk in multi-loop applications.
6. Reset Switch : The reset switch enables the detector to be manually reset during commissioning and testing .This results in the detector re-tuning the sensing loop and becoming ready for vehicle detection
7. Two separate output relays: Presence Relay A is presence output, can be extended for 0,2,5,8,10,15,20 or 30 seconds. Pulse Relay B, programmable with external 10 way DIP switches, provide presence, pulse on entry, pulse on exit, or failed output.
Customer Reviews：
2. Diagnostic Capabilities: Comprehensive diagnostics capabilities allow for accurate diagnosis of loop and installation problems.
3. Selectable Presence Time: The output of the presence relay can be selected to limit a detect output to a fixed time(time>30 minutes) while a vehicle remains on the loop.
4. Sensitivity setting: The 16 sensitivity settings allow for finer adjustment of the detection level
5. Frequency setting: The 4 frequency settings provide greater flexibility in preventing crosstalk in multi-loop applications.
6. Reset Switch : The reset switch enables the detector to be manually reset during commissioning and testing .This results in the detector re-tuning the sensing loop and becoming ready for vehicle detection
7. Two separate output relays: Presence Relay A is presence output, can be extended for 0,2,5,8,10,15,20 or 30 seconds. Pulse Relay B, programmable with external 10 way DIP switches, provide presence, pulse on entry, pulse on exit, or failed output.
Customer Reviews：
Model:NBLD105 |
| Self-turning range | 20-2000uh |
| Voltage | 100-240VAC |
|
Relay output
|
presence relay/fault relay |
| Working temperature | -40℃ - +70℃ |
| Sensitivity | 0-F(0 is Low - F is High) |
|
Response time
|
turn on 10-90MS, turn off 10-90NS
|
| Visual Indications |
Power LED-Red, Channel LED-Green
|
|
Humidity
|
up to 95% relative humdiity without consideration |
|
Sensitivity
|
16 ways selectable, highest: 0.010% DL/L, Lowest: 2.56% DL/L
Loop
|
| wire | more than 10 meters requires the use of a 2 core shielded cable, do not exceed 200 meters distance between control box and loop |
|
Size
|
92mm*76mm*42mm |
|
Connections
|
11-pin Submagnal(USA sytle)
|
| Housing color | Green |
