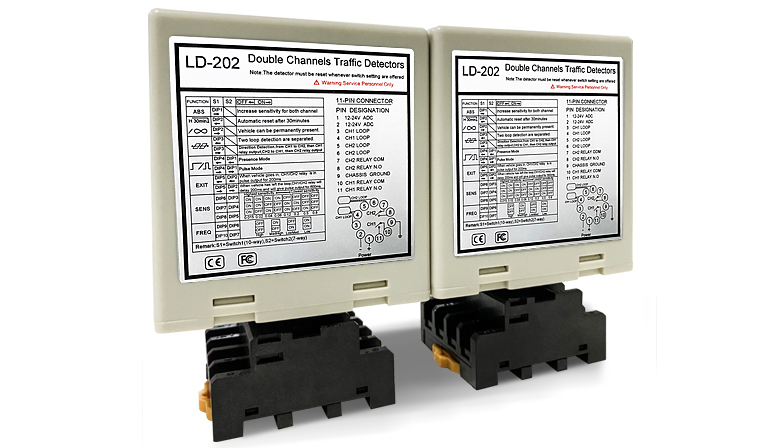

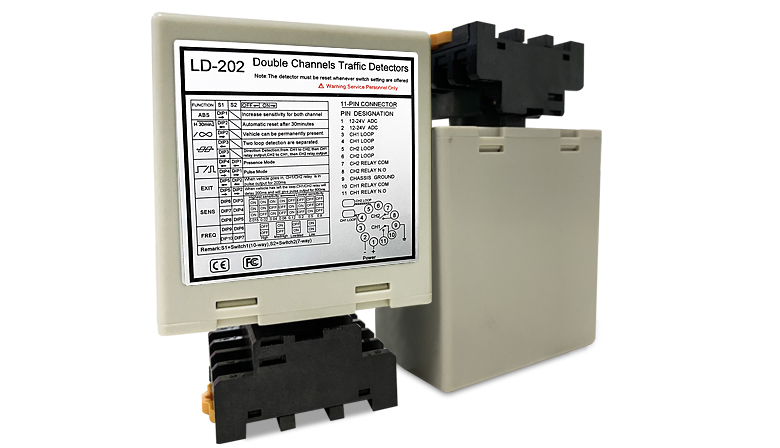

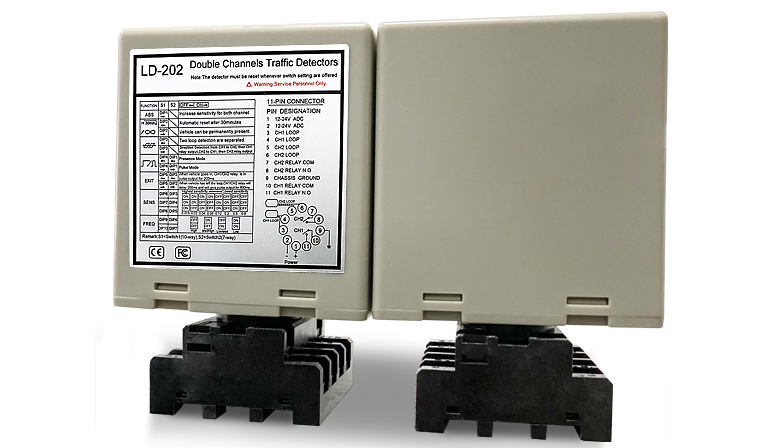

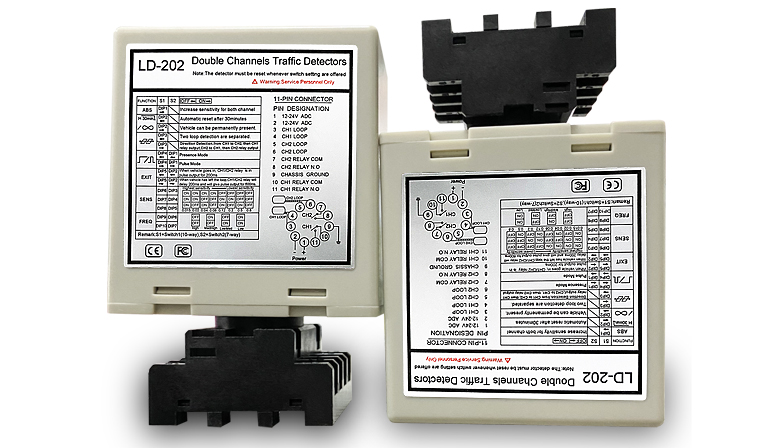

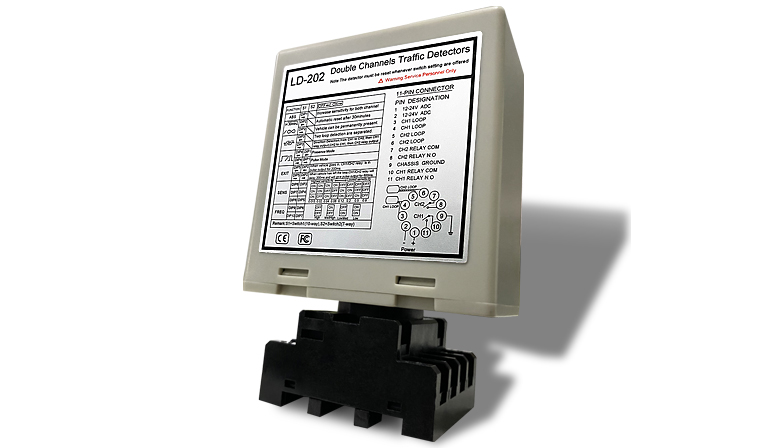

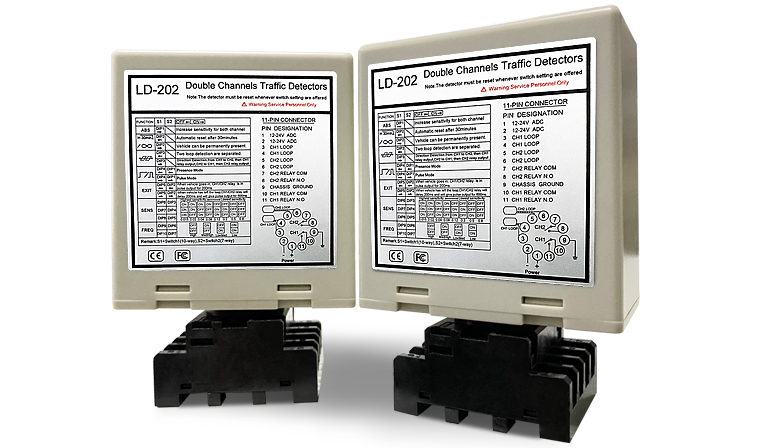

Vehicle loop detector
Four step selectable Vehicle loop detector
( 2 Years Warranty Vehicle loop detector )
Features/Benefits
Specifications

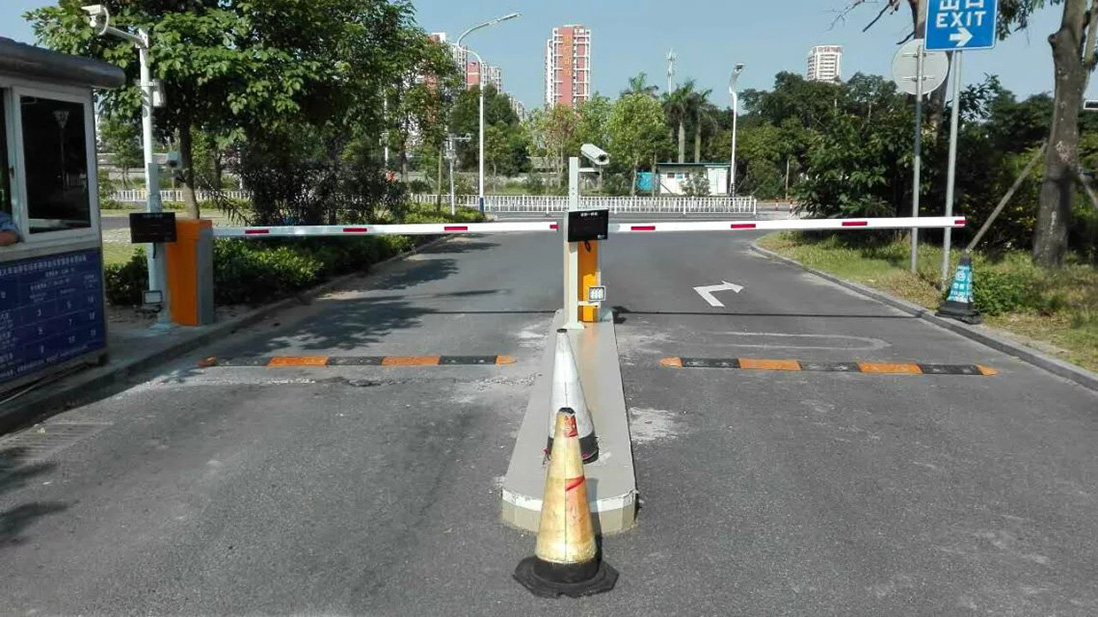

Project
Download
- Four step selectable frequency(20-80KHz)
- Slef-tuning rang: 20-2000uH
- Sensitivity: 16 levels are adjustable
- Application: Traffic control applications, Toll system, Vehicle counting, Traffic Analysis.
- Response time: 10-90 ms
- Connection: 11-pin submarginal type (86cp 1)
- Relay output: 2 relays, users configurable as presences or pulse output, normally open(N/ON) contact.
- Loop inductance: Ideal:25uH-1000uh; Max:20uH-1200uH
Customer Reviews：
| Model: NBLD202 | |
|---|---|
| Supply voltage AC: | 110V/220V/DC12~24 |
| Frequency range: | 20KHz to 100 KHz |
| Sensitivity: | adjustable in 16 increments |
| Reaction time: | 10ms |
| Loop inductance: | Ideal: 100μH to 300μH (incl. conn. wiring) |
| Environment Compensation: | Automatic drift compensation |
| Loop connection: | <5m optimal, twisted at least 20 times per meter, <10Ω total resistor |
| Operating temperature: | -20 to +65ºC |
| Storage temperature: | -40 to +85ºC |
| Relative Humidity: | <90% |
