  • Lower consumption
  • Fashion deisgn
  • Large viewing angle
  • Long life time
  • Waterproof IP 65
  • Speical optical system, color equality
  • Far viewing distance
  • Accord with international relational standard

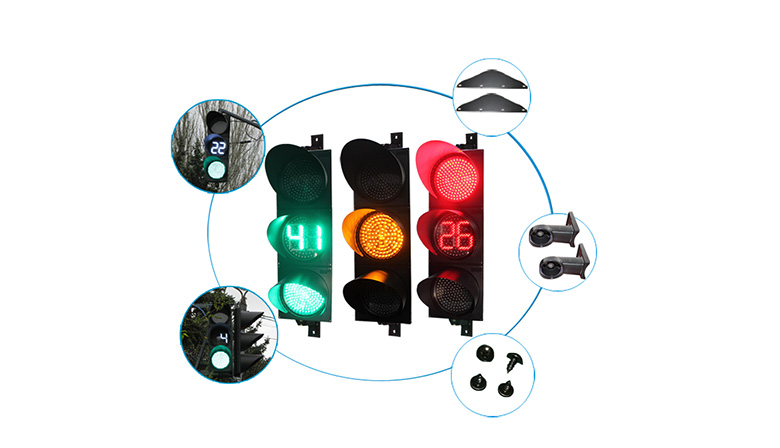

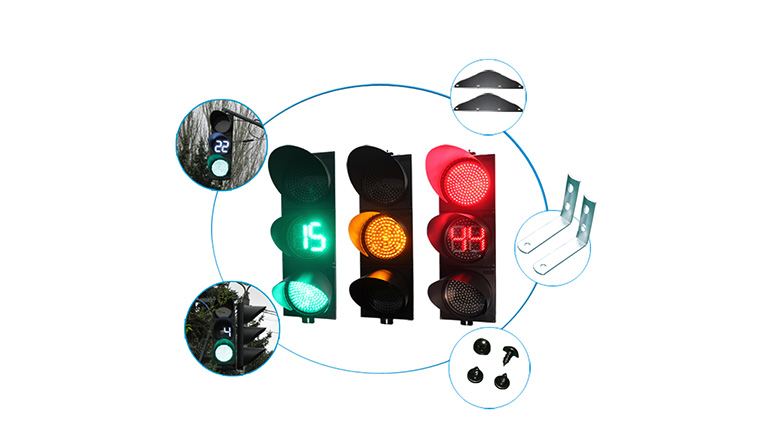

Model: NBJD312-2 + DJS321-RG
Items Parameters
Size 300mm 300mm 300mm 300mm 300mm
Color Red Yellow Red Green Green
LEDs (pcs) 168 122 112 112 168
Wavelength 625±5 590±5 625±5 505±2 505±2
Module shape Round Round Round Round Round
Power consumption (W) <12 <11 <10 <10 <12
Housing material PC ( UV-stabilized polycarbonate)
Voltage (V) 12-24V DC  100-277V AC
Luminance (cd) 800cd
Operating temperature (℃) -30℃~+ 60 ℃
Insulation resistance ≥2M
Total harmonic distortion <20%
IP rate IP65
