Traffic Control Solution Provider
LED intelligent traffic signal light

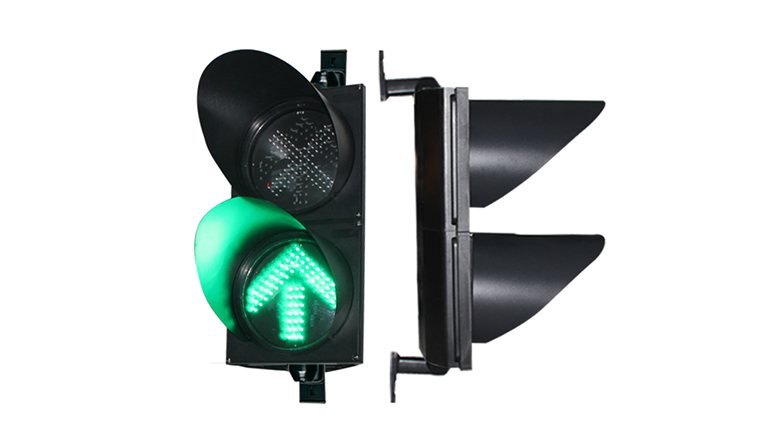

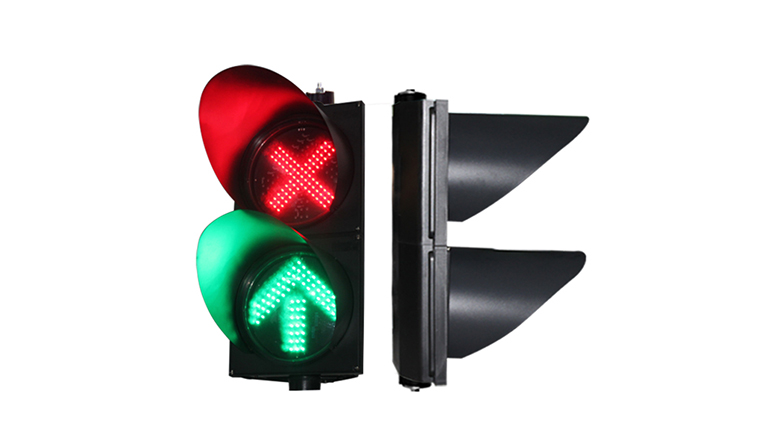

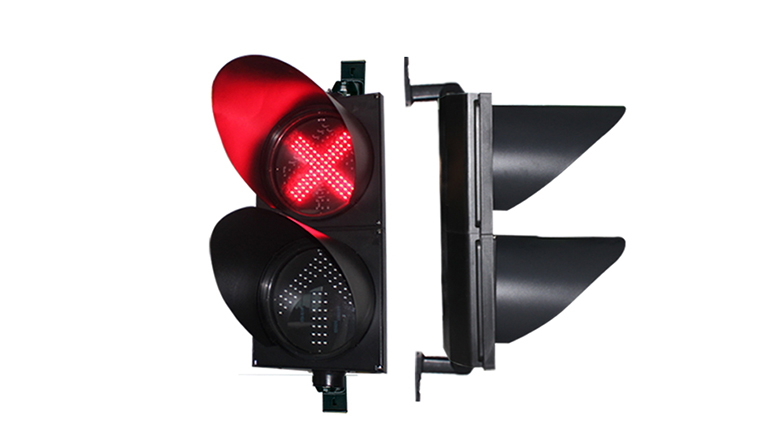

300mm Energy-saving intelligent traffic lights
( 2 Years Warranty intelligent traffic lights )
Features/Benefits
Specifications

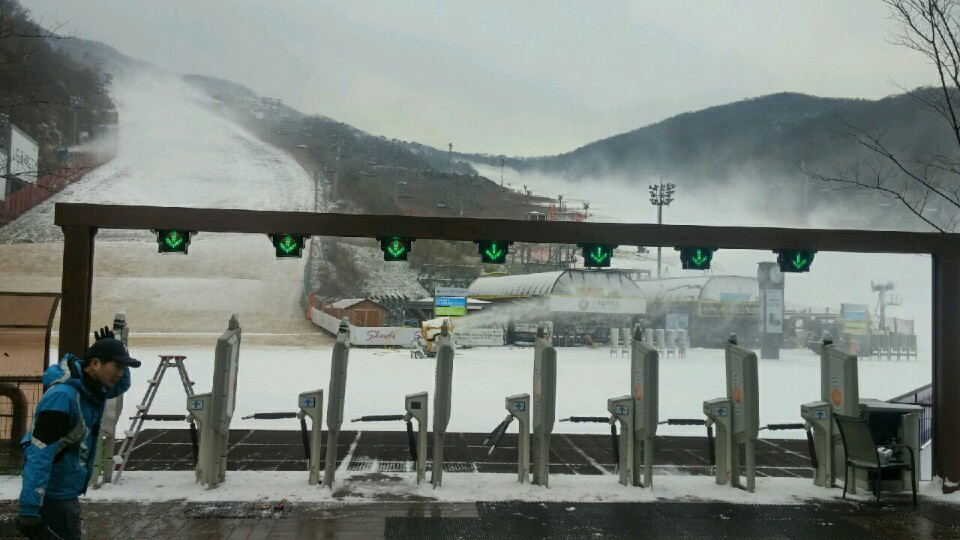

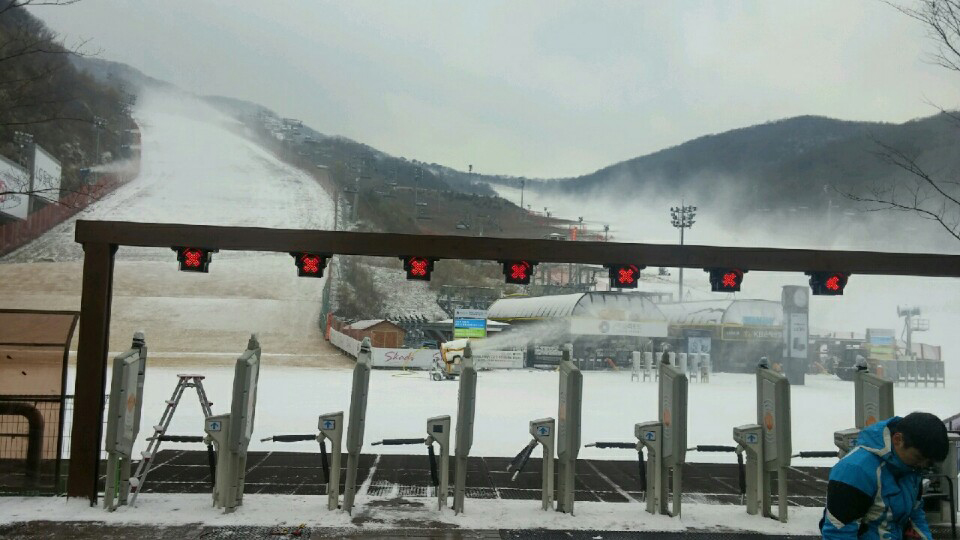

Project
Download
- Lower consumption
- Fashion deisgn
- Large viewing angle
- Long life time
- Waterproof IP 65
- Speical optical system, color equality
- Far viewing distance
- Accord with international relational standard
| Model: NBCD312-2 | ||
|---|---|---|
| Items | Parameters | |
| Size | 300mm | 300mm |
| Color | Red | Green |
| LEDs (pcs) | 69 | 60 |
| Wavelength | 625±5 | 505±2 |
| Module shape | Round | Round |
| Power consumption (W) | <6 | <5 |
| Housing material | PC ( UV-stabilized polycarbonate) | |
| Voltage (V) | 12-24V DC 100-277V AC | |
| Luminance (cd) | 400cd | |
| Operating temperature (℃） | -30℃~+ 60 ℃ | |
| Insulation resistance | ≥2M | |
| Total harmonic distortion | <20% | |
| IP rate | IP65 | |
