Home > Our Product > LED countdown timer series > NBDJS321-RG

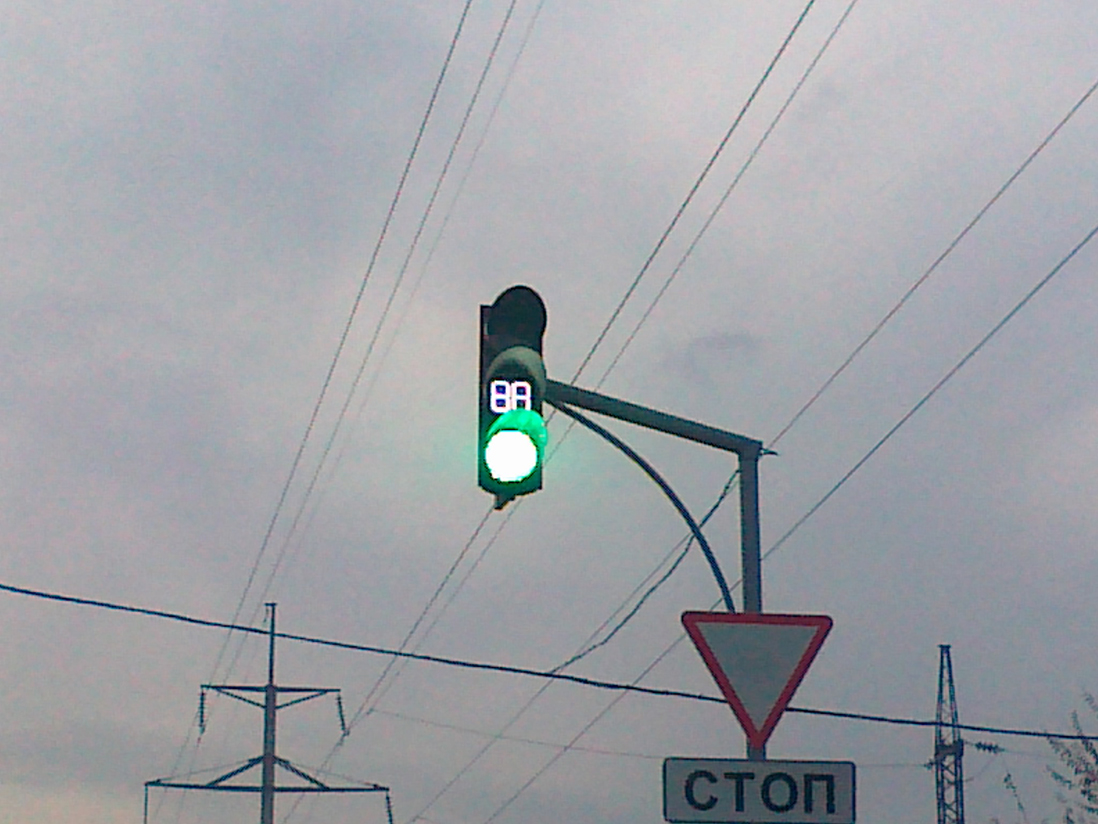

Features/Benefits Specifications Project Download
  • High brightness LEDs with integrated optics
  • Three colors showing the time of red, green and yellow light separately
  • LED diodes array scientifically and neatly, uniform brightness and wide view angle
  • Easy installation and maintenance
  • Moisture and dust tight seal
  • Surrounded by sun visor, effectively prevent water& dust.
  • Color wires with connector for easy connection
  • The damage of a single LED diode would not affect the performance of the timer
  • Studying mode, can automatically detect the signal phase time and adjust the time displayed accordingly Short learning time, can study the new phase time after one complete cycle
  • Energy saving
  • Wide working voltage
  • Total Harmonic Distortion<20%
  • Open door from the mid-front, easy to install and check.
Characteristics

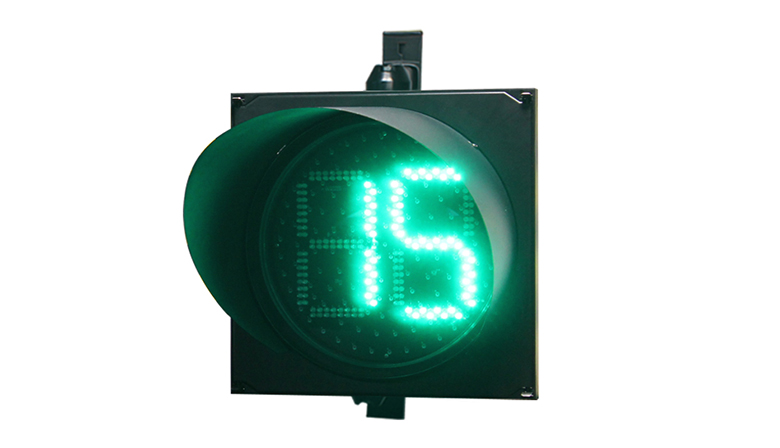

Model NBDJS321-RG
Color Red Green
Size(mm) 300 300
Profile Round Round
Voltage VDC 12~24VDC 100~277VAC 12VDC 110/220VAC
LEDs 112s 112s
Typical Wattage at 25℃ <7 <7
Luminance (cd/㎡) >400 >400
Typical Dominant Wavelength (nm) 625±5 505±2

Gather to pack:
Model NBJD321-RG
Housing material PC
Dim.of Outer Carton 880*410*200mm
Quantity/CTN 1
G.W/CTN 7.17kgs
N.W/CTN 5.41kgs
Packing Carton
