Traffic Control Solution Provider

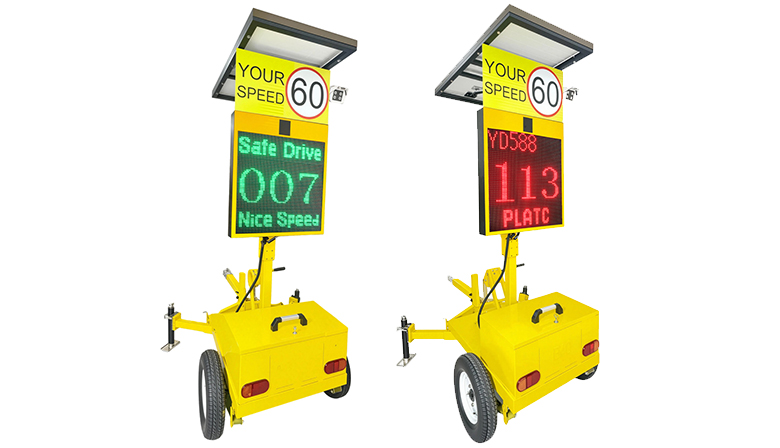

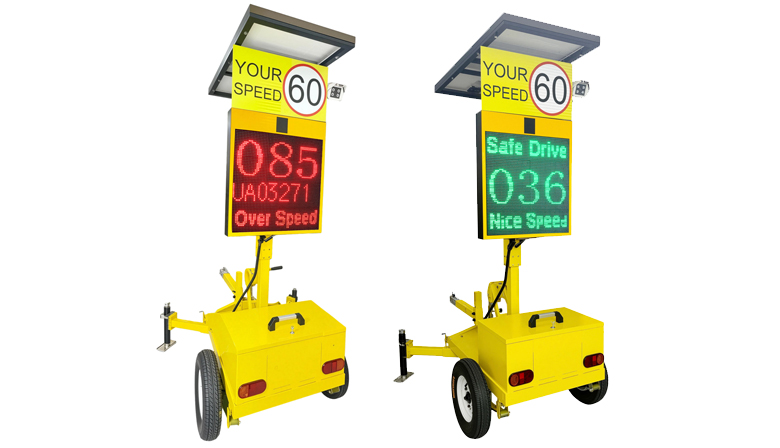

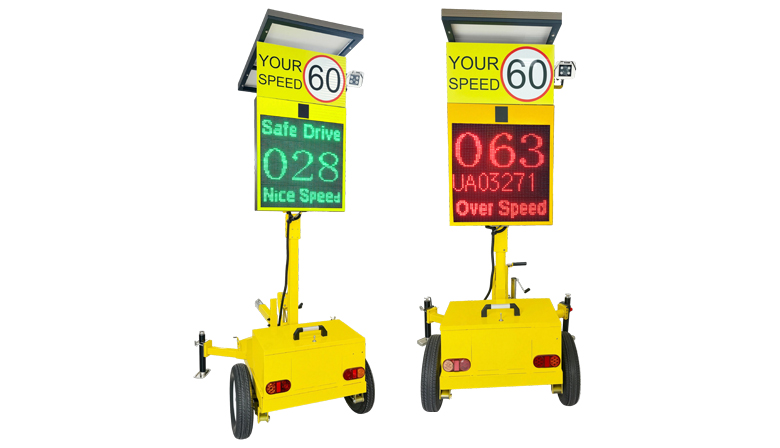

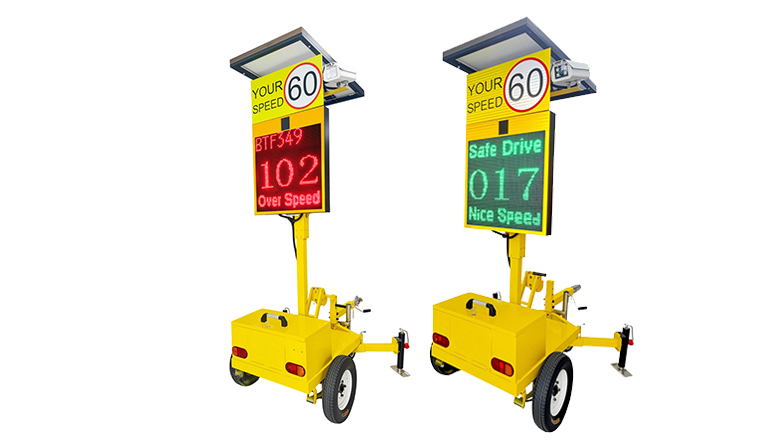

Solar Trailer LPR speed limit sign
Energy-saving Solar Trailer LPR speed limit sign
( 1Year Warranty solar trailer LPR speed limit sign)
Features/Benefits
Specifications

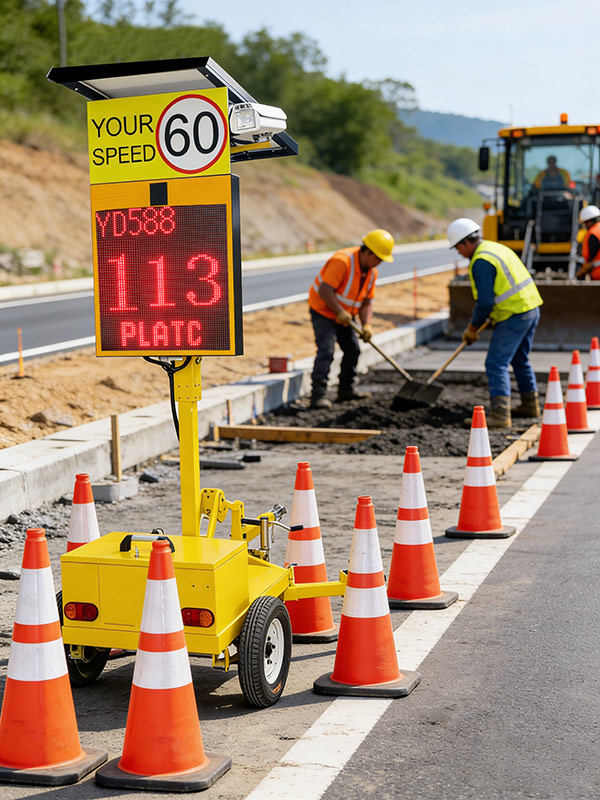

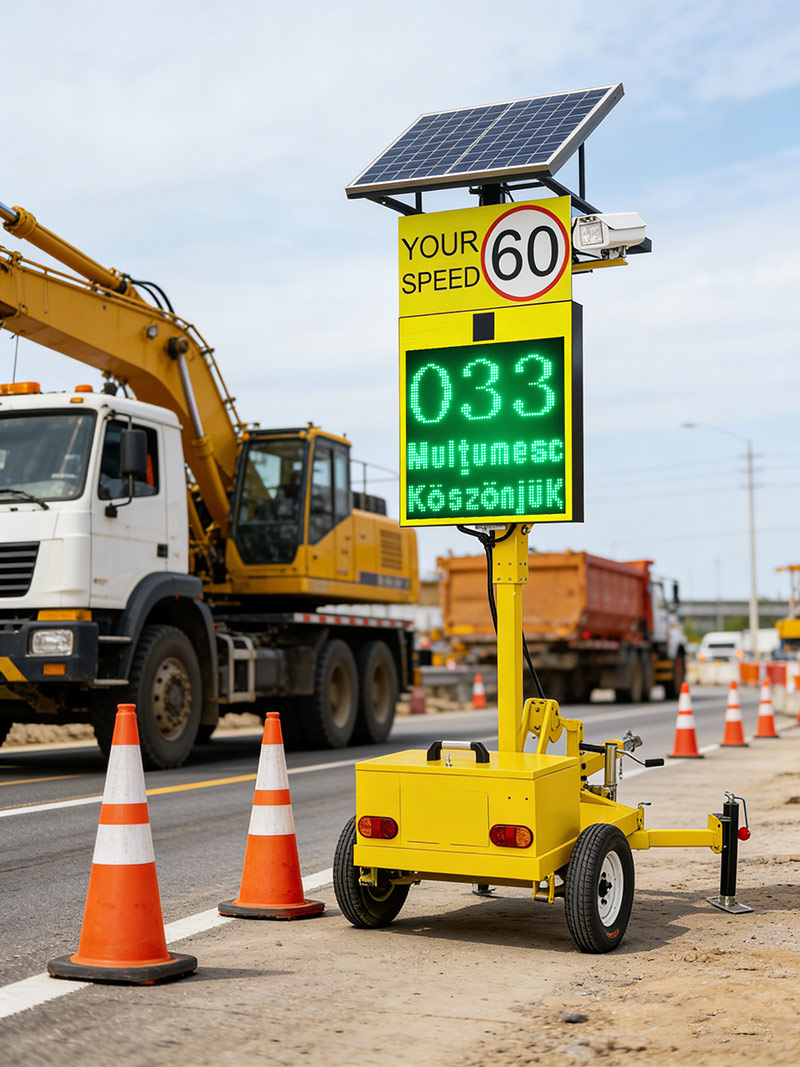

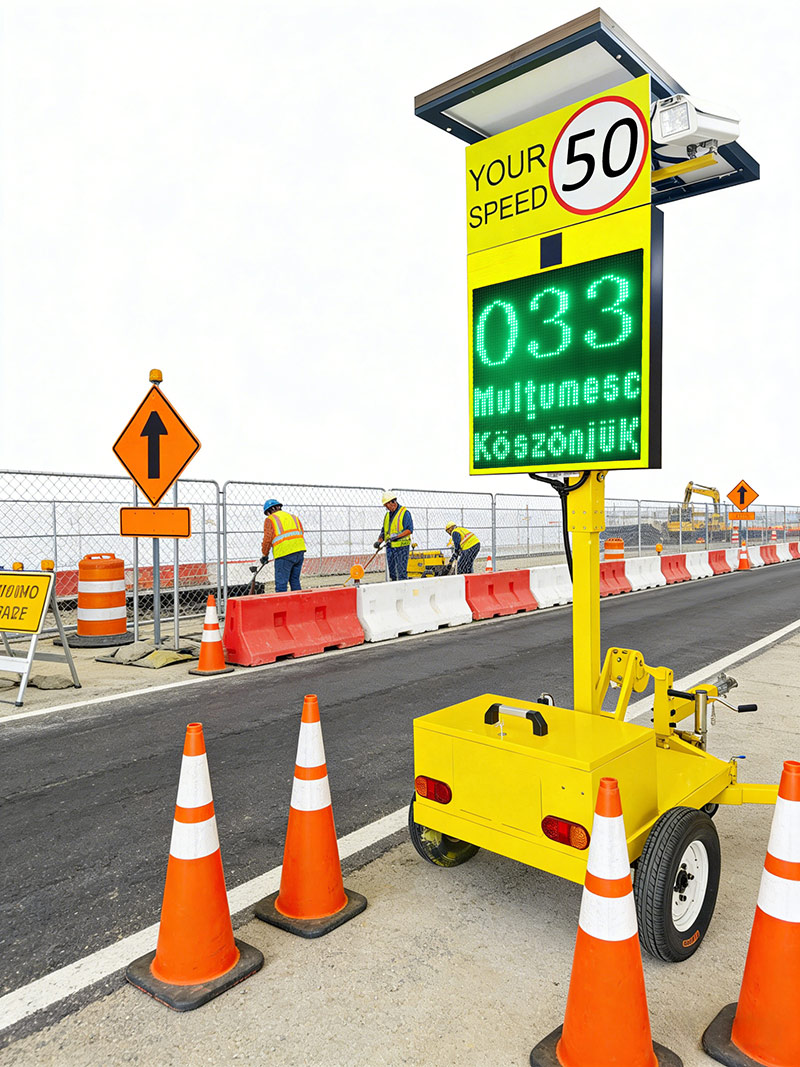

Project
Download
The Noble outdoor Solar Portable Trailer adopts cold-rolled iron body,equipped with solar panels. The trailer structure is designed with extendablemanual supports and jacks installed at the four corners of the chassis,ensuring safety and stability.The NobTra LPR Traffic Radar Speed Sign uses the principle of radar speedmeasurement, combined with LED technology, to display the speed of thevehicle to the driver in time. Generally speaking, the solar portable trailerLPR speed limit sign consists of four parts: 1) Speed limit sign; 2) Radar speedmeasuring device; 3) Electronic display board; The display board will show thespeed of the vehicle, and if there are multiple vehicles driving in the area at thesame time, the electronic display board will show the speed of the fastestvehicle among these vehicles;4)solar portable trailer.
The NobTra LPR Traffic Radar Speed Sign feedback sign is a device equippedwith a speed limit sign and can display the speed of passing vehicles in thedetection area on the LED screen in real-time. The vehicle speed feedbacksign is widely used in the subsequent radar speed measurement.
The NobTra LPR Traffic Radar Speed Sign displays the speed of the vehicle onthe LED screen through radar speed measurement. The advanced speedfeedback sign can also display the green speed value for average speed, andthe read speed value for Overspeed to warn the driver. Drivers pay attentionto controlling their speed. Surveys have shown that vehicle feedback signscan be effective in reducing vehicle speed.
NobTraR LPR radar sign can help us:1.If the driver over-speed, the LPR will output a warningmessage to show them, keep safety. Slow down. And the LPR camera take aphoto.2.Connect the LPRS to center room via 4G. easy to get the data from the LPRS.3.The vehicle detection data also can connect to the traffic intersection, help usto solve the traffic jam. Or help us to make a plan for the traffic control.4.Warning message: diffarent country symbol can display.
FEATURES
-Energy saving and environmental protection, "o" noise,"O"pollution;
-Manual lifts safely and reliably;
-Easy operation and maintenance;
-Quick and easy deployment;
--Compact structure for long distance transportation

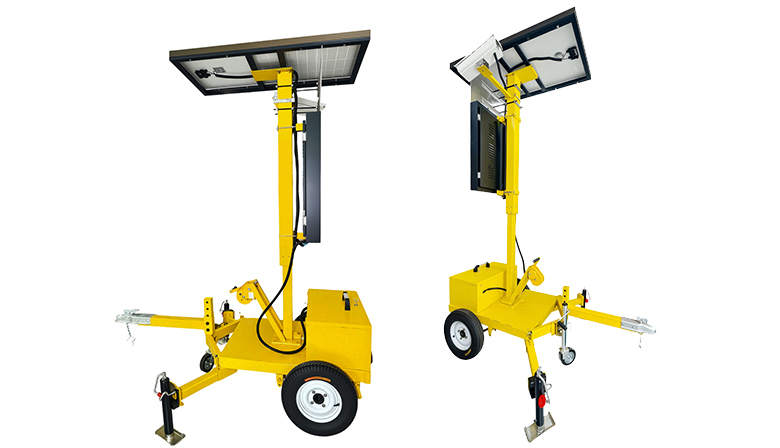

Trailer specifications:
Trailer width (mm):1040MM
Trailer length (including tow bar): 1961MMLifting system:manual liftingMinimum height of the trailer: 1995mmMaximum height of trailer lifting: 3070mmRange of lifting distance:1100mmPowder coating color: Orange/Yellow
Wheel size: 18 inches
Standard battery capacity: 150AH (we suggest buy
it in your locally)
Standard solar panel: 10ow
Taillight: Yes
>Solar charging:Yes
Trailer material: cold-rolled ironRust prevention treatment: electrostatic sprayingJack:2 pieces
Weight (excluding panels): About 300kg
Radar Speed Sign specifications:
>LED Screen: 640 x 640mm
>Pixel:10mm
>housing size:700*800*112MM
>Brightness:6500nits
>Power consumption:5V@40A
> Front speed limit pane: 30 km/40/50/60(optional)>Display Color: Red and green
>Light decay: 10000h/3 years working time,
light decay (mcd)s20%
3M membrane materials: 3M engineering grade>Continuous rainy days: 7-10 days
Visible distance: Above 300 Meters
>Warranty Period:1 year
>Waterproof level:IP54
Working voltage:100-240VAC or 9-18VDC
Radar working frequency: 24.125 GHz or 24.200 GHz
Detection speed range:1-250kM/H
Detection distance: Standard 200Meters (100meters
50meters)
Strobe: Dual Strobe and Single Strobe
Internal: SS300 Doppler (FCC approved)
Output Power (EIRP): 20dBm
> Antenna Angle: Horizontal: 30°, Pitch: 16° (3dBBeamwidth, Actual Detection Angle Greater Than4 Lanes)
LPR camera specifications
>Working Voltage:100-240VAC/12VDCPower Consumption<5W
> Working Temperature:-30°~+65>Overall License Plate Recognition Rate>97%>No license plate detection rate >99%>Anti-counterfeiting rate>99%
Vehicle Speed>97%
recognition distance:18m~35m
>Vehicle Speed:130km/h
> Video Compression Standard:H.264/MJPEG;>Video Resolution:352*288、 704*576、 1280*720.
1920*1080
>Sensor.3 Megapixel Starlight CMOS
>Resolution:2304*1296
> Fill Light:Built-in Infrared LED Fill Light,
>Adjustable Brightness
> Exterior Dimensions:443mm146mm105mm
