Solar Trailer Arrow Board
Energy-saving Solar Trailer Arrow Board
( 1Year Warranty solar trailer Arrow Board)
Features/Benefits
Specifications
Project
Download

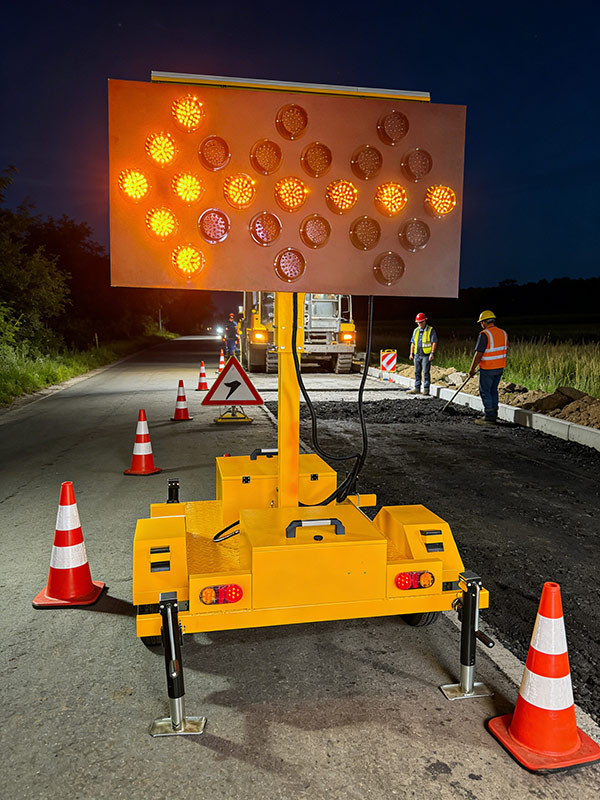

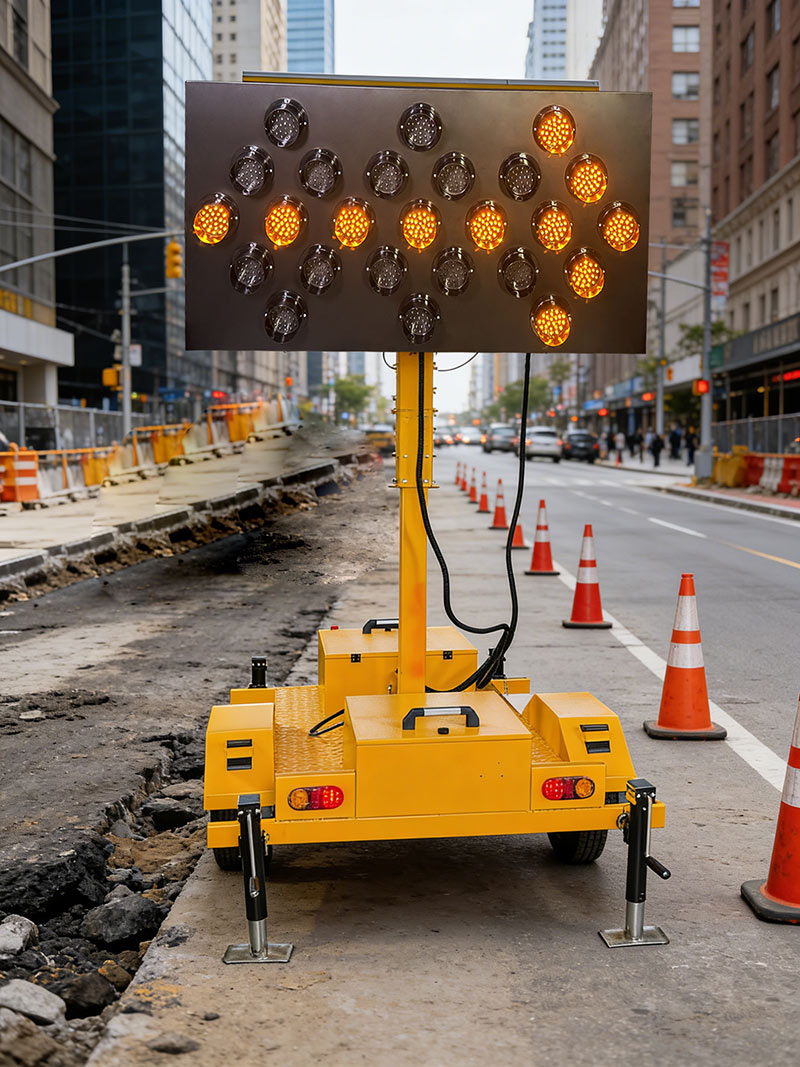

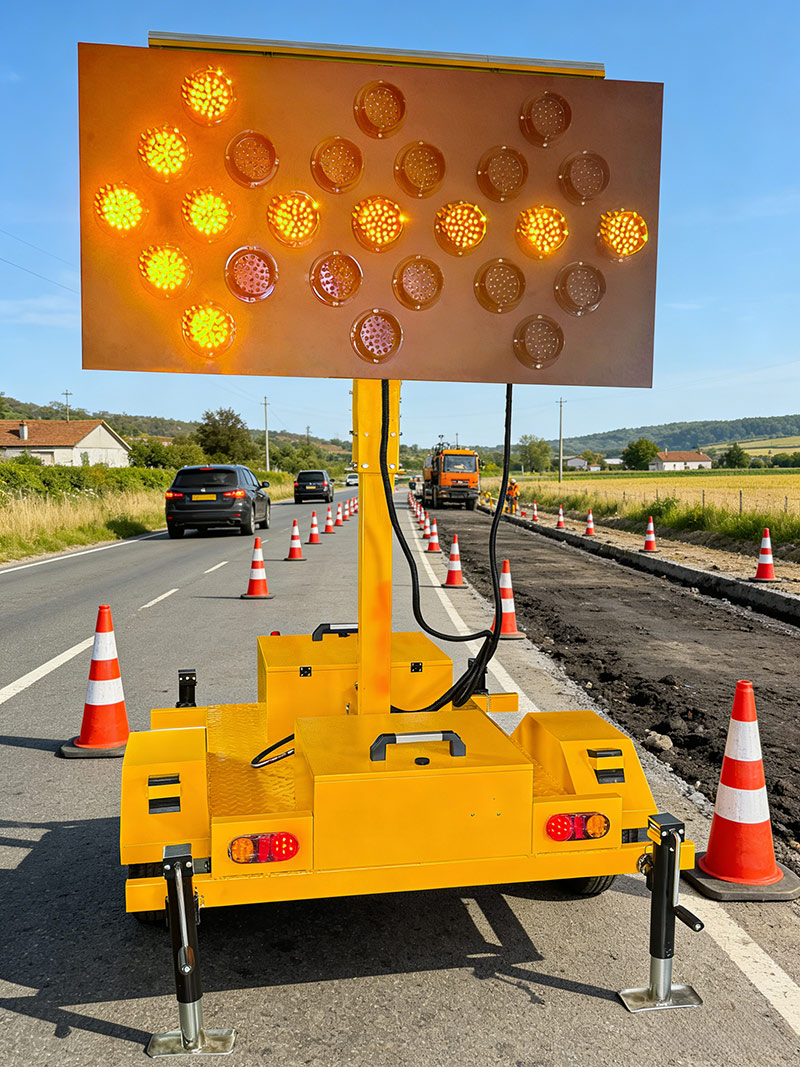

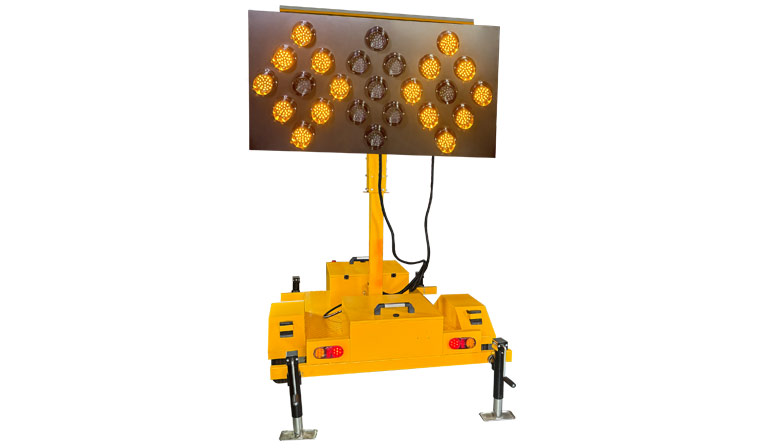

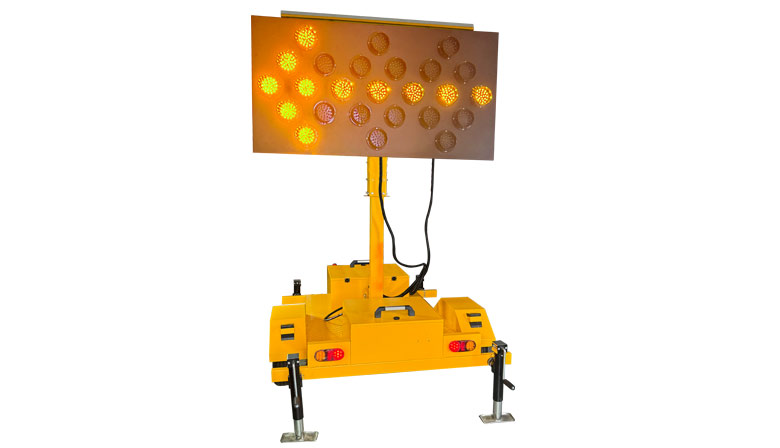

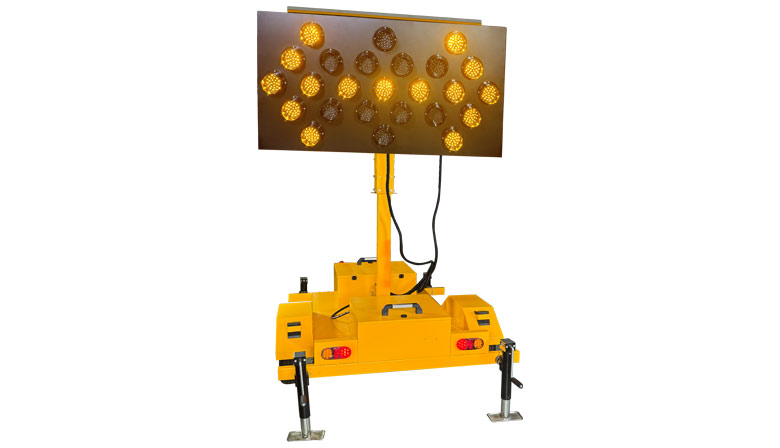

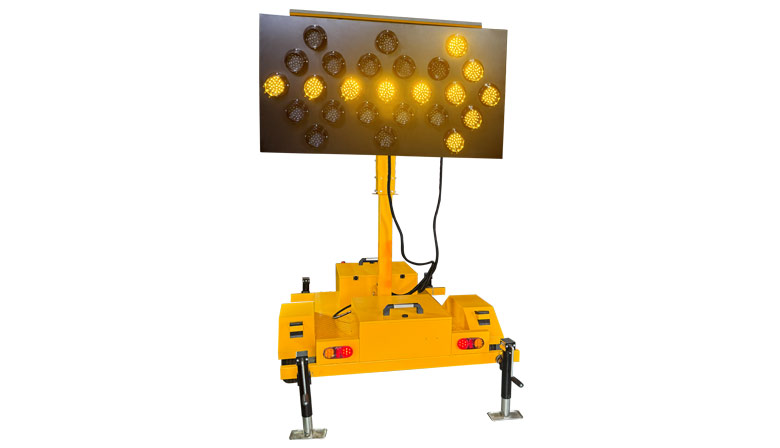

Our LED arrow board are a kind of warning signs for safe construction and safe operation,and reminding passing vehicles to be safe and slow.Mainly used in engineering construction sites to remind passing vehicles or pedestrians to pay attention to the construction hazards ahead, drive or walk in the direction indicated: this product is widely used on expressways express roads, municipal roads, national roads provincial roads, general roads and other traffic lanes. Partial or temporary engineering construction, road cleaning, road maintenance and other construction work needs, instruct drivers or pedestrians to traffic, promote smooth traffic and avoid traffic accidents and accidents. LED vehicle Arrow board was the directional signs are generally composed of LED pixel tubes.The pixel tubes are equipped with high-brightness LED traffic light beads. The pixel tubes are controlled by the control system to turn on and off. Different combinations of pixel tubes can display different directions or graphics. The material is iron. ,Durable.
Description:
--LED Arrow board is controlled by intelligent MCU, has transmitter and receiver two parts
--LED Arrow board is used Full-Duplex Trans.missions, wireless remote control, automatically extending and retracting with actuator up and down
--Operating Voltage is 12/24VDC
--13 kinds of work status: 6 flashing, 7 sequential.
--Brightness adjustment:20%,25%，50%，75%,100%
--If choose external power supply, when power is lower than 12V, low voltage indicator is on and the brightness adjust to 25% automatically.
Features:
LED lamps with patented mirror technology
Visibility up to 1 mile
Visual indication of arrow modes on controller
Low vehicle battery and short circuit conditionAuto up/down motor function·
Working modes:25bulls-6 flashing modes, 7 sequential modes15bulls-5 flashing modes, 2 sequential modes·
View distance:>1000m

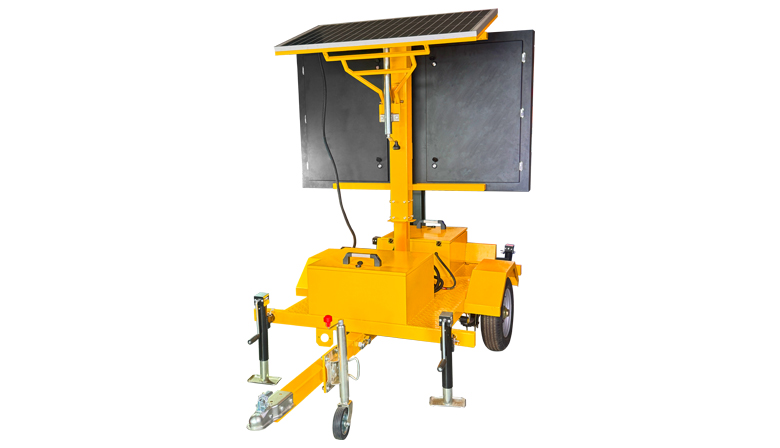

Trailer specifications:
>Trailer width (mm): 1440MMTrailer length (including tow bar): 2518MM>Lifting system: hydraulic>Minimum height ofthe trailer: 1980mm>Maximum height oftrailer lifting: 2780mmRange of lifting distance: 800mmPowder coating color: Orange/YellowWheel size: 16inchesVMS board rotation angle: 270 degreesStandard battery capacity: 2 x 150AH (total 300AH)Standard solar panel:2x 150W (total 30oW)
Taillight Yes
Solar charging: Yes
Trailer material: cold-rolled iron>Rust prevention treatment:electrostatic sprayingJack:4 pieces
PWeight (excluding panels): About 640kg
Remote wireless controller:
A+B= Flashing modes
B+C= Sequential modes
C Actuator' srise and fall, press the key to control the board fall or riseD Brightness adjustment mode
Wired car controller:
Choose 15 lights or 25 lights through
DIP switch on receiver
Mode selection keyXFlashing and sequential control key
Brightness adjustment key, to switch four modes (25%,50%,75%,100%),the correspondent indicator is on
Actuators rise/fall key, press one time to rise/fall, press second time to stop,the correspondent indicator is on
Low voltage indicator:
When connect 12V battery, the voltage drops to 11.4V, the indicator will be on,and the arrow board lights'brightness adjusts to 25% automatically;
