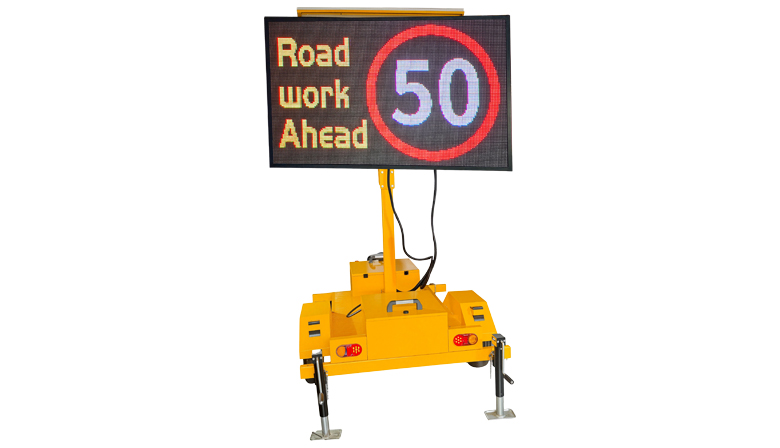

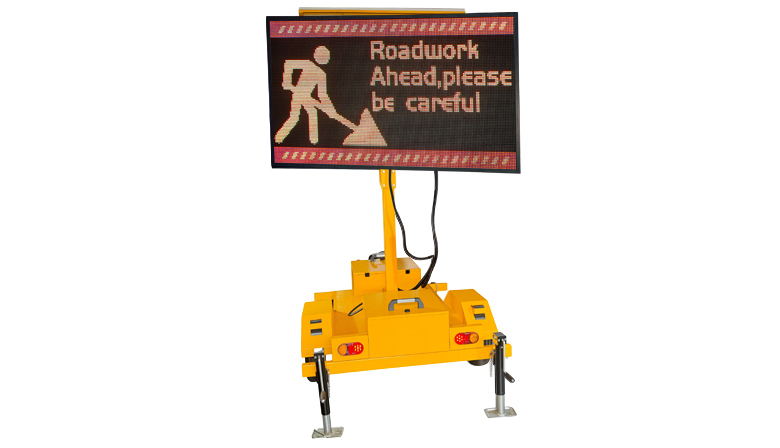

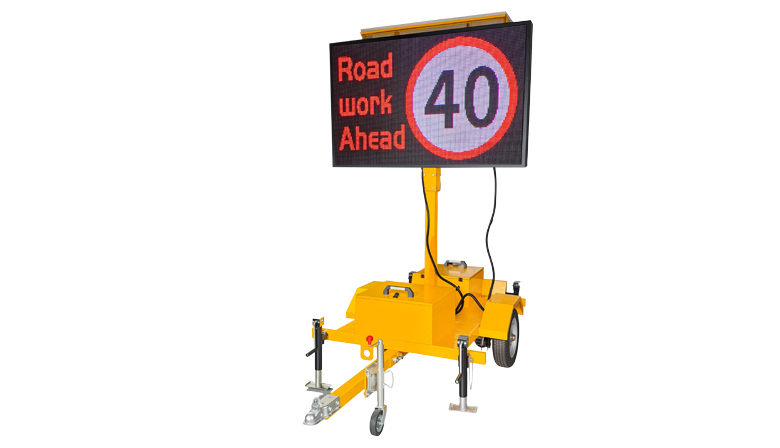

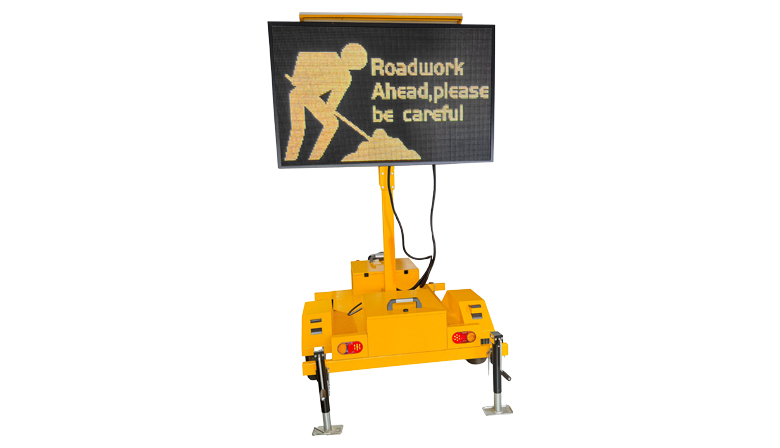

Solar Portable Mobile trailer VMS


Energy-saving Mobile Variable Message Signs (VMS)

( 1Year Warranty Mobile Variable Message Signs (VMS)
Features/Benefits Specifications Project Download

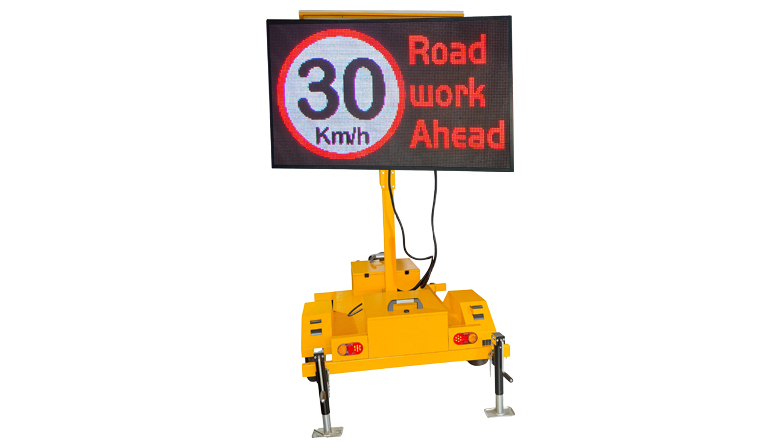

The outdoor solar portable mobile trailer VMS,Mobile Variable Message Signs (VMS),solar trailer Mountded VMS boards adopts cold-rolled iron body, equipped with solar panels, lifting system and rotating system that can rotate 270 degrees. The solar trailer trac sign can be set with various dynamic information signs and trailer information signs through the APP, providing the most eective solution. The product is widely used on roads to curb trac congestion, remind vehicles to detour on construction roads, and remind drivers to wait for students to pass through the road on school roads. On the other hand, it can also provide attractive promotional advertisements, discounts, and some upcoming special events for retail stores and shops. Supports modifying text in both APP and PC software, and can display dierent text, symbols, animation speed limits, etc The VMS trailer is equipped with a hydraulic telescopic rod that can rotate 270 degrees. The trailer works through solar energy, so it does not cause any noise and is very suitable for outdoor use. At present, the existing size use P10 outdoor full-color module and 5-color LED display screen. VMS can be easily managed and set through PC, tablet PC or mobile APP, and can display many dierent texts, animations, texts, multiple languages, images and videos, making information stand out. The trailer structure is designed with extendable manual supports and jacks installed at the four corners of the chassis, ensuring safety and stability


Features:
·Energy saving and environmental protection, "0" noise, "0" pollution;
·Mast lifts safely and reliably;
·Easy operation and maintenance;
·Quick and easy deployment;
·Compact structure for long distance transportation;
·Liftable height: Minimum height: 1980mm Maximum height: 2780mm
Lifting distance range: 800mm





VMS Display Screen Parameters:
Dimensions (height x width in ): 1660 x 1020 mm
Screen resolution (height x width ): 160 x 96 pixels
Display color: Full color (red, green, blue, white, etc.)
Pixel spacing (mm): 10
Module type: P10 outdoor waterproof screen
Module brightness: ≥ 8000cd/m2
Pixel composition: 1R1G1B Red: Jingyuan , Green: Shilan,
Blue: Shilan
Single LED rated current luminous intensity: R: 800mcd,
G: 2500mcd, B:450mcd
Viewing angle: 110 degrees horizontally, 50 degrees vertically
Display content: text, images, GIF,video
Parameter settings: Supports Android (APP), Apple (IOS), PC (PC)
Rated voltage: 24V
Whole machine power consumption: ≤ 1060W
Temperature range: -20 ° C -+60 ° C
Protection level: IP 54
Lifespan: 100000 hours
Communication methods: Ethernet or WIFI



Trailer specifications:
Trailer width (mm): 1440MM
Trailer length (including tow bar): 2518MM
Lifting system: hydraulic
Minimum height of the trailer: 1980mm
Maximum height of trailer lifting: 2780mm
Range of lifting distance: 800mm
Powder coating color: Orange/Yellow
Wheel size: 16 inches
VMS board rotation angle: 270 degrees
Standard battery capacity: 2 x 150AH (total 300AH)
Standard solar panel : 2 x 150W (total 300W)
Taillight: Yes
Solar charging: Yes
Trailer material: cold-rolled iron
Rust prevention treatment: electrostatic spraying
Jack: 4 pieces
Weight (excluding panels): About 640kg

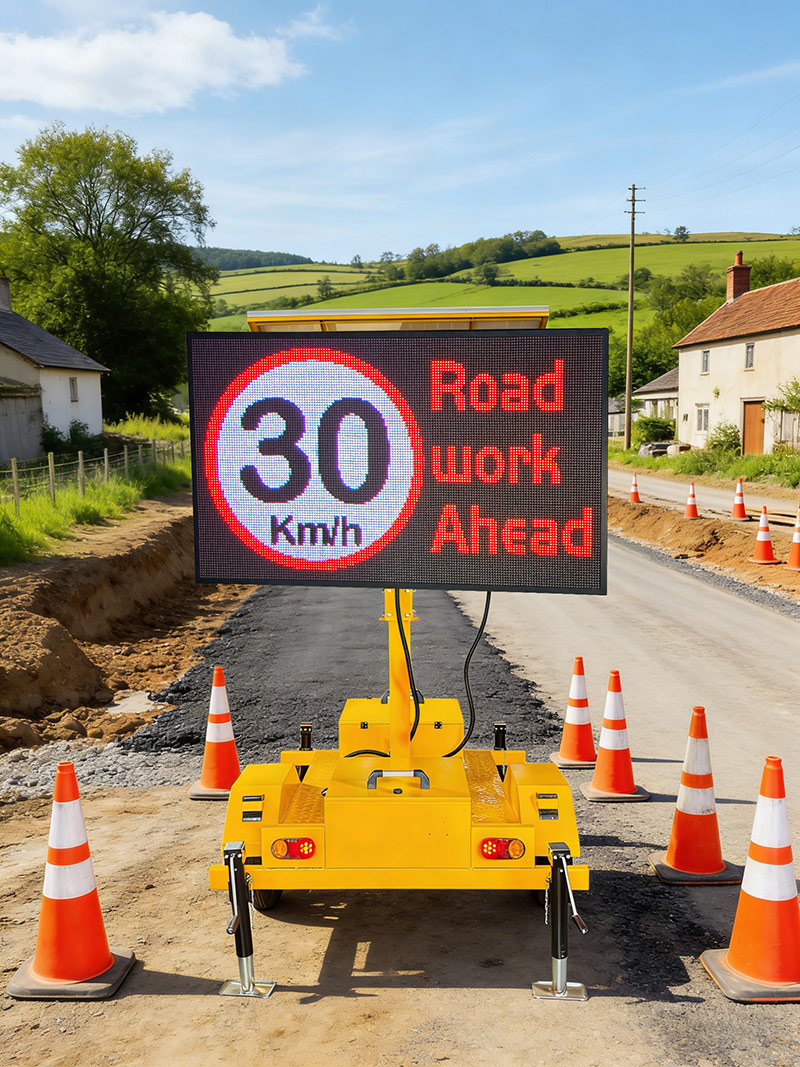

solar portable mobile trailer VMS project

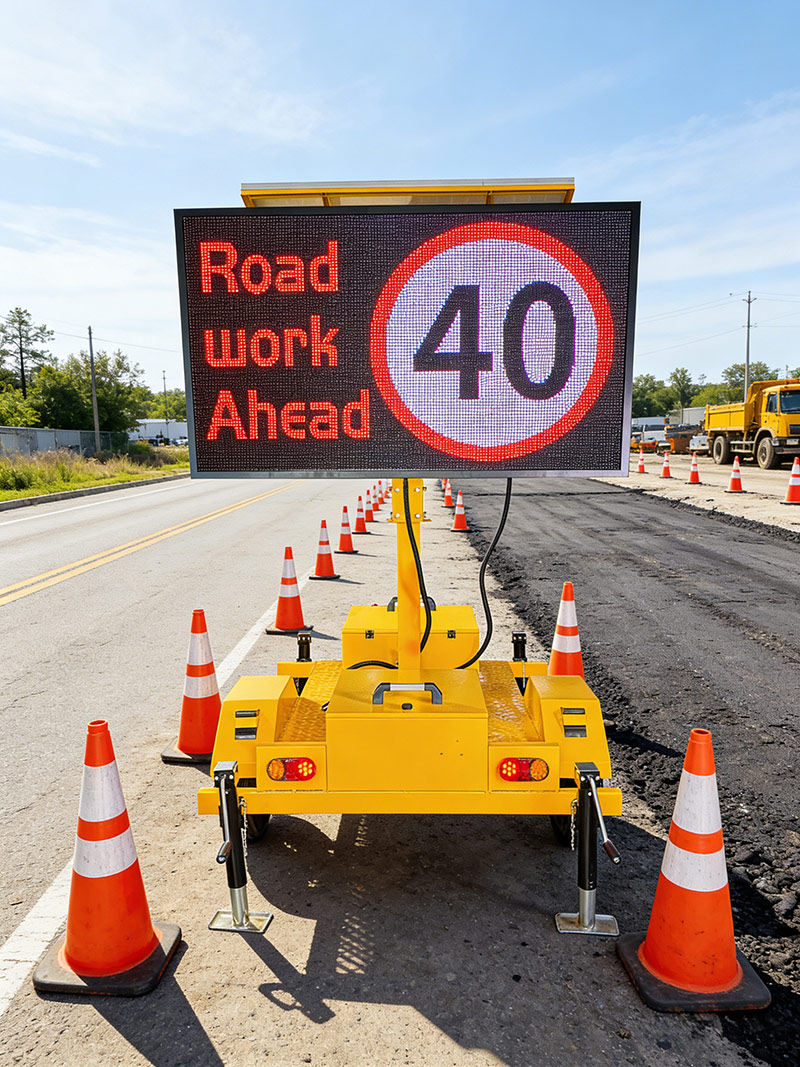

Mobile Variable Message Signs (VMS) project

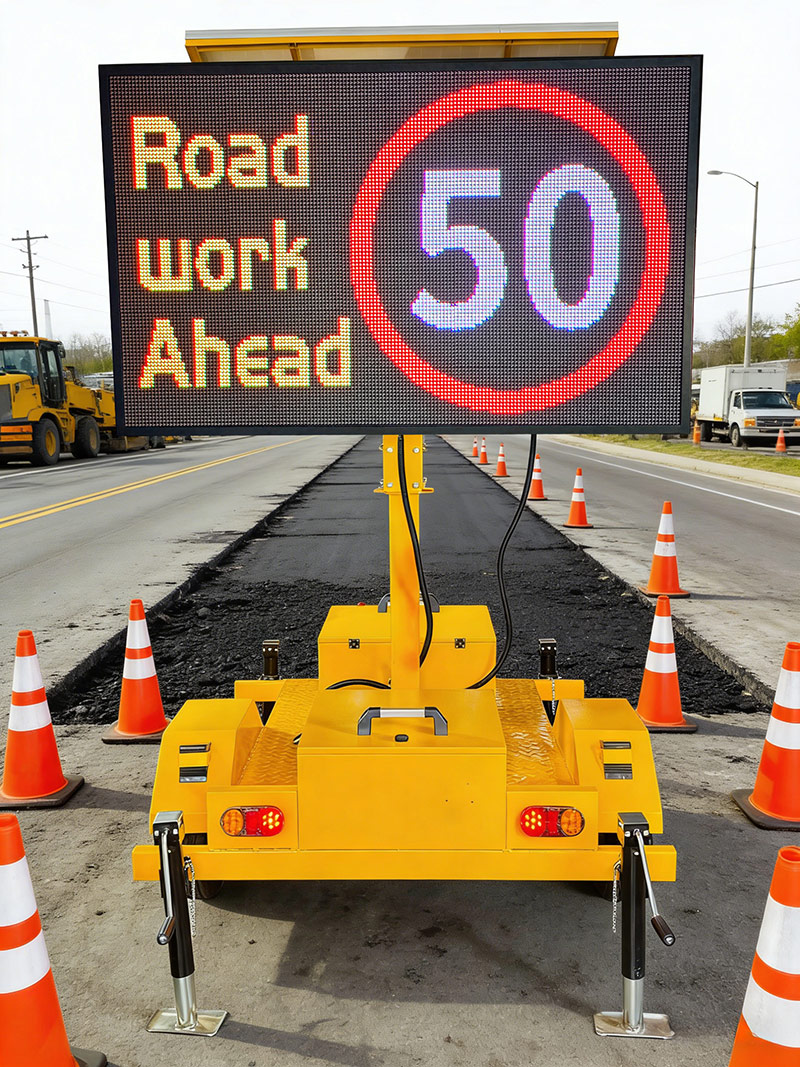

solar trailer Mountded VMS boards
