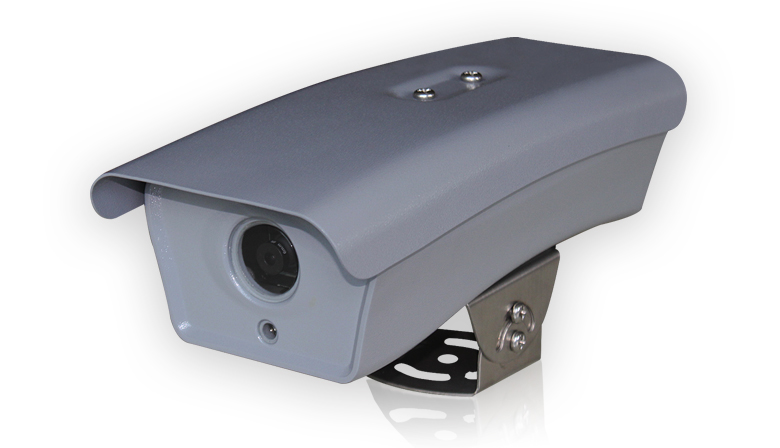

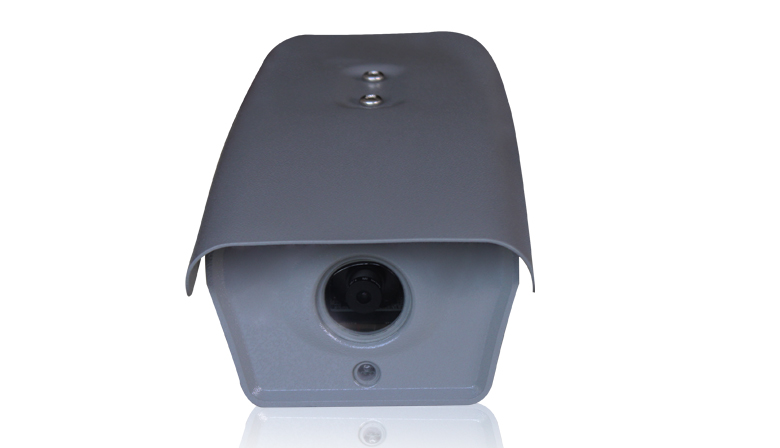

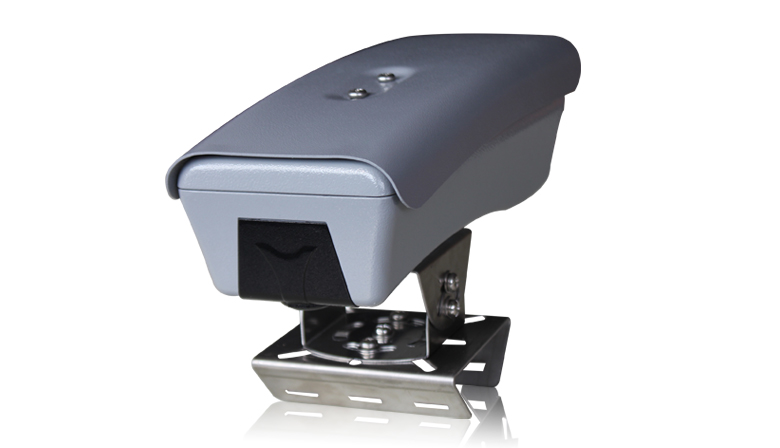

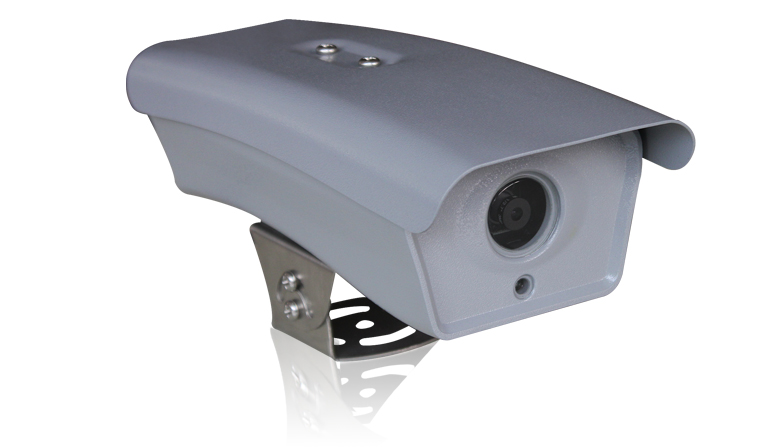

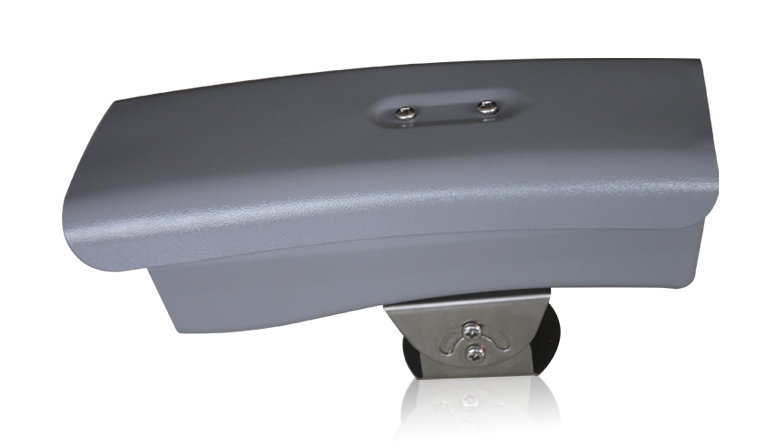

  • Traffic Camera Detector Features & Benefits

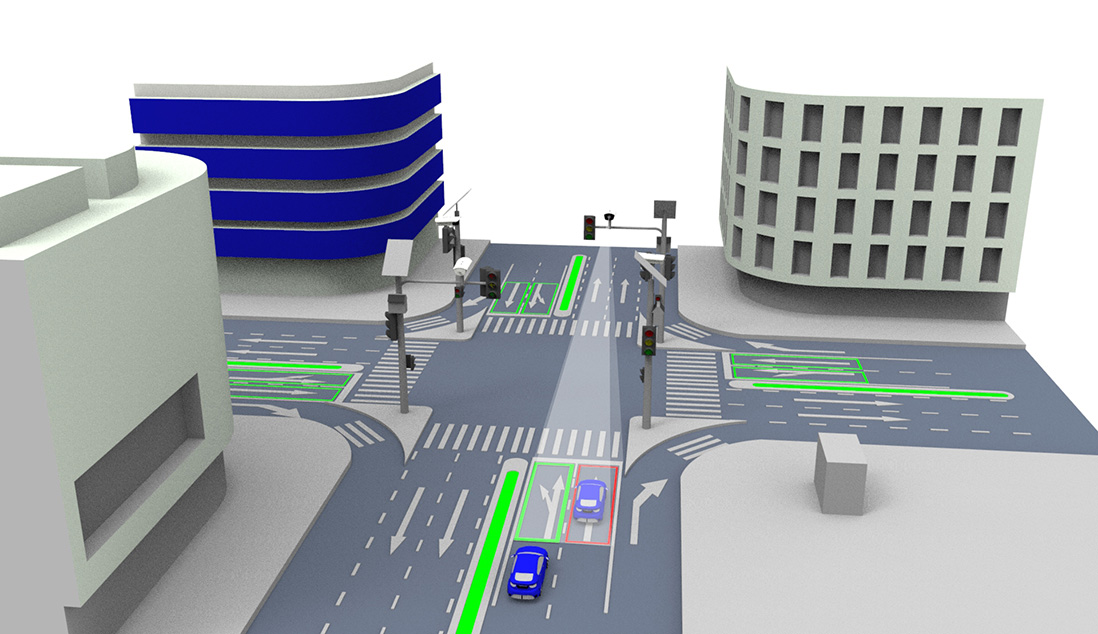

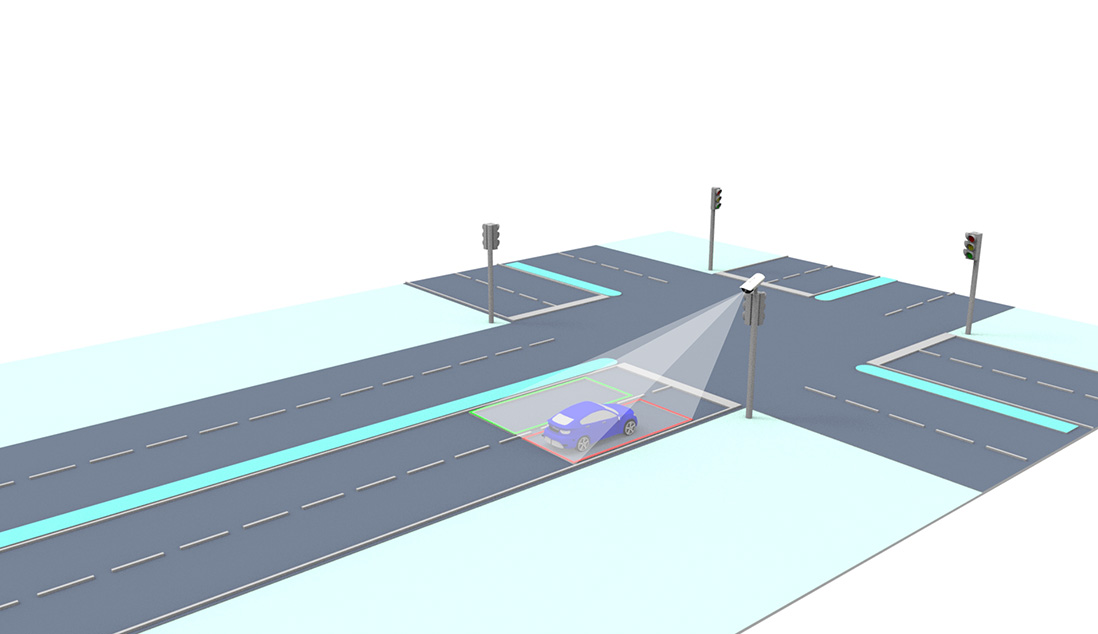

    Direct visual verification of the existence of the area TCD series enables you to pinpoint and verify the vehicle presence detection area. As these areas appear on video images, you can easily relocate these areas as traffic conditions change.

  • Key functional:

    - Road vehicle detection

    - Video Transmission, Queue Detection, and Traffic Monitoring (TCD-8 Only)

  • Key benefits:

    - Integration of small size (with camera & controller)

    - Wide dynamic, high sensitivity

    - Non-intrusive ground installation

    - Adapted to day and night

    - Real-time verification and monitoring (TCD-8 Only)

    - Real-time traffic view (TCD-8 Only)

System Overview NBTCD-8
Detection Functionalities Vehicle presence + data+ video
# Detection Zones 8
# Detection Outputs 8 via 485 & Ethernet & wireless
Resolution 640x480 pixels
Frame rate 20 FPS
Lens Types Focal Distance Detection Distance Wide Angle 2.8mm 0-30m Narrow Angle 6.0mm 15-75m
Mounting Height 3,5-12m
CMOS type 1/2.8” color
Compression MJPEG,H.264
Material Aluminum
Dimensions Vertically mounted 42 cm x 17 cm x 13 cm, Horizontally mounted 23 cm x 38 cm x 13 cm
Sunshield Optional
Operating voltage 12-42VAC
IP Address Yes
Communication PC - Sensor Interface & Via Ethernet
Interface(s) 485、Wireless、Ethernet
PC Tool for Setup Traffic Configuration Tool
EMC Electromagnetic Compatibility 2004/108/EG
FCC FCC Part 15 Class A
Temperature Range -30C to +70C
Materials Weatherproof(UV-resistant)
Protection grade Housing = IP67

TCD Lens type Focal distance Detection distance
TCD-8F28 Wide 2.8 mm 0 - 30 m
TCD-8F60 Narrow 6.0 mm 15 - 75 m
