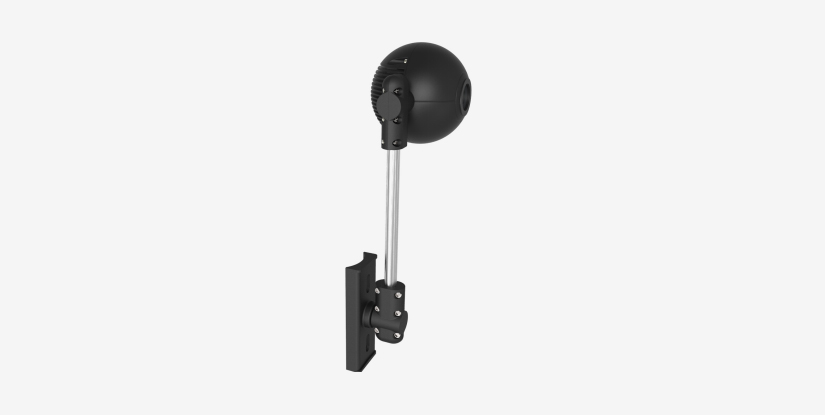

Traffic Camera Detector V1.5


Traffic Camera Detector (TraCamDetTM)

Features:

Traffic Camera Detector Features & Benefits

Direct visual verification of the existence of the area

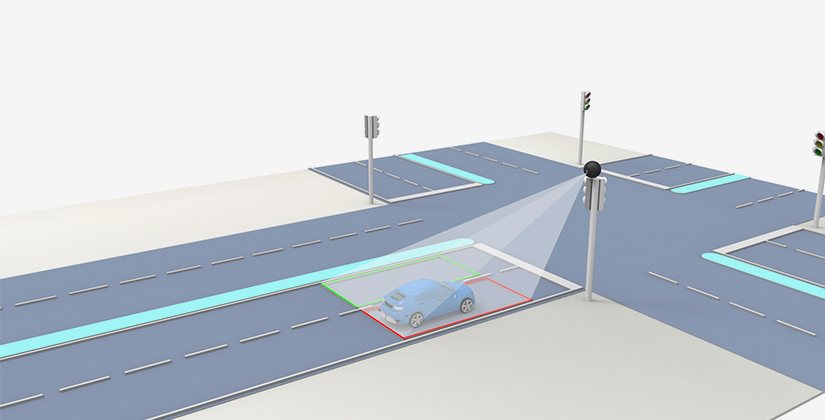

TCD series enables you to pinpoint and verify the vehicle presence detection area. As these areas appear on video images, you can easily relocate these areas as traffic conditions change.

Key functional:

  1. Road vehicle detection
  2. Video Transmission, Queue Detection, and Traffic Monitoring (TCD-8 Only)

Key benefits:

  1. Integration of small size (with camera & controller)
  2. Wide dynamic, high sensitivity
  3. Non-intrusive ground installation
  4. Adapted to day and night
  5. Real-time verification and monitoring (TCD-8 Only)
  6. Real-time traffic view (TCD-8 Only)

Specifications:

TCD Series Specifications

System Overview TCD-3 (wireless) TCD-8
Detection Functionalities Vehicle presence Vehicle presence + data+ video
# Detection Zones 3 8
# Detection Outputs 3 via interface via wireless & 485 8 via 485 & Ethernet & wireless
CAMERA
Resolution 640x480 pixels 640x480 pixels
Frame rate 10 FPS 20 FPS
Lens Types Focal Distance Detection Distance Wide Angle 2.8mm 0-30m
Narrow Angle 6.0mm 15-75m
Wide Angle 2.8mm 0-30m
Narrow Angle 6.0mm 15-75m
Mounting Height 3,5-12m 3,5-12m
CMOS type 1/2.8’’ black & white 1/2.8” color
Compression JPEG MJPEG,H.264
Housing
Material Aluminum Aluminum
Dimensions Vertically mounted 42 cm x 17 cm x 13 cm, Horizontally mounted 23 cm x 38 cm x 13 cm Vertically mounted 42 cm x 17 cm x 13 cm, Horizontally mounted 23 cm x 38 cm x 13 cm
Sunshield Optional Optional
Power, outputs, communication
Operating voltage 12-42VAC/DC 12-42VAC
IP Address No Yes
Communication PC - Sensor Interface Interface & Via Ethernet
Interface(s) 485 、Wireless 485、Wireless、Ethernet
PC Tool for Setup Traffic Configuration Tool Traffic Configuration Tool
Regulatory, environmental
EMC Electromagnetic Compatibility 2004/108/EG Electromagnetic Compatibility 2004/108/EG
FCC FCC Part 15 Class A FCC Part 15 Class A
Temperature Range -30C to +70C -30C to +70C
Materials Weatherproof (UV-resistant) Weatherproof(UV-resistant)
Protection grade IP67 Housing = IP67
TCD Lens type Focal distance Detection distance
TCD-8F28 Wide 2.8 mm 0 - 30 m
TCD-8F60 Narrow 6.0 mm 15 - 75 m
  •
