  • Energy saving, long life
  • Environmental adaptability
  • Short switching times between different colors
  • Variety of installation to fit for the different environments
  • Reasonable structure, atmosphere, simple and beautiful appearance
  • Strong protective properties (waterproof, dustproof, shock)
  • Fast method using the mold assembly, maintenance and replacement parts quickly abnormalities
  • Visual effects, color uniformity,far visual distance

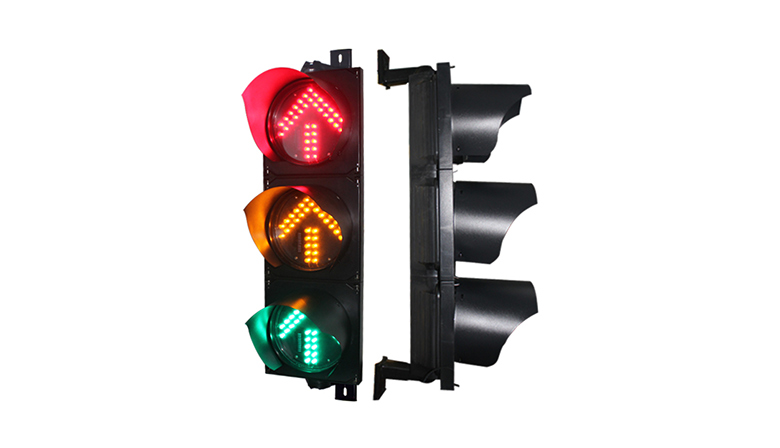

Model: NBFX213-3
Items Parameters
Size 200mm 200mm 200mm
Color Red Yellow Green
LEDs (pcs) 36 36 36
Wavelength 625±5 590±5 505±2
Module shape Round Round Round
Power consumption (W) <3 <3 <3
Housing material PC ( UV-stabilized polycarbonate)
Voltage (V) 12-24V DC  100-277V AC
Luminance (cd) 800cd
Operating temperature (℃) -30℃~+ 60 ℃
Insulation resistance ≥2M
Total harmonic distortion <20%
IP rate IP65
