Traffic Control Solution Provider

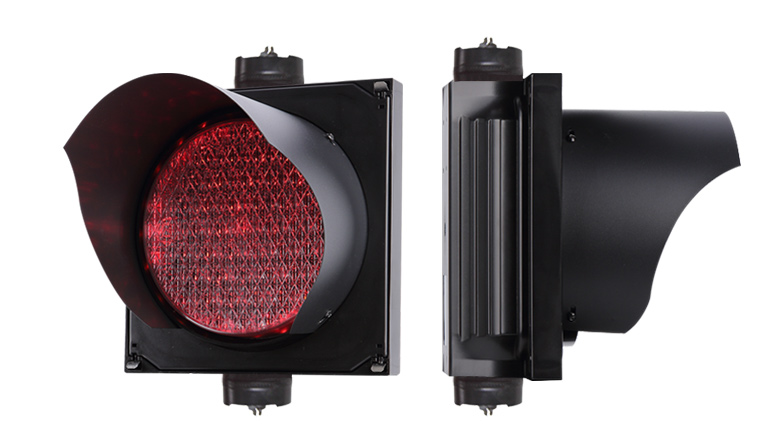

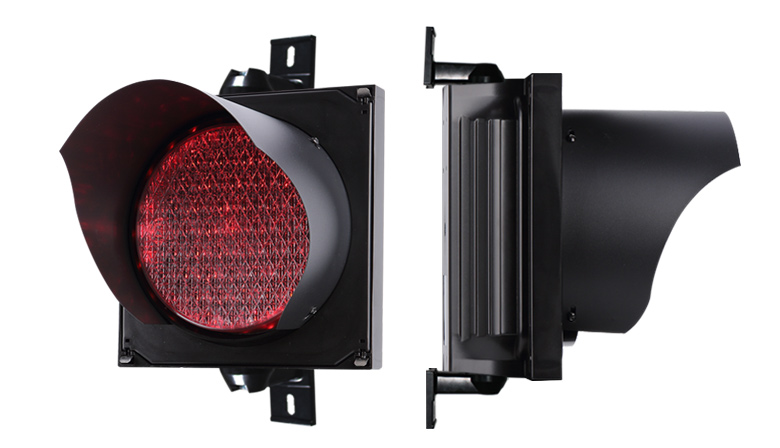

8inch red led traffic light
8inch red color led traffic light CE，EN12368
( 2 Years Warranty intelligent traffic lights )
Features/Benefits
Specifications
Project
Download
Features
• High luminous output
• Operates in high temperatures
• Moisture resistance
• LED’s driven at low current in order to avoid premature ageing
• Compatible with existing Traffic Controllers in relation to dimming and monitoring
• Long term reliability and operational life
• Low output degradation
• Low sun-phantom intensity
• No veiling reflection
• Durable thermoplastic components
• Exceptional structural strength
• Injection moulded or aluminium pressure diecast modular housing components
Our Advantage
- Reduce overall operating & mainenance costs:Energy saving:90% reduction in power consumption vs incandescent
- Reliability & traffic safety:·Improved visibility over life of the product Reduces emergency lamps outs Design minimizes sun phantom effects
-
Easy to install into existing signal enclosure
Our Services
1. All the product of out company have two years warranty.
2. We can teach you how to install the traffic light and how to operate we can also provide video about our traffic light and you can have a reference.
3. You can consul us at 24 hours, we have assistant to answer your question.
| Moel: NBJD211F-R | |
|---|---|
| Items | Parameters |
| Size | 200mm |
| Color | Red |
| LEDs (pcs) | 61 |
| Wavelength | 625±5 |
| Module shape | Round |
| Power consumption (W) | <7 |
| Housing material | PC ( UV-stabilized polycarbonate) |
| Voltage (V) | 12-24V DC 100-277V AC |
| Luminance (cd) | 800cd |
| Operating temperature (℃） | -30℃~+ 60 ℃ |
| Insulation resistance | ≥2M |
| Total harmonic distortion | <20% |
| IP rate |
IP65 |
200mm red led traffic light project
