Traffic Control Solution Provider
Wireless solar intelligient traffic
Wireless solar intelligient traffic light controller
( 5 Years Warranty Wireless solar intelligient traffic light controller )
Features/Benefits
Specifications

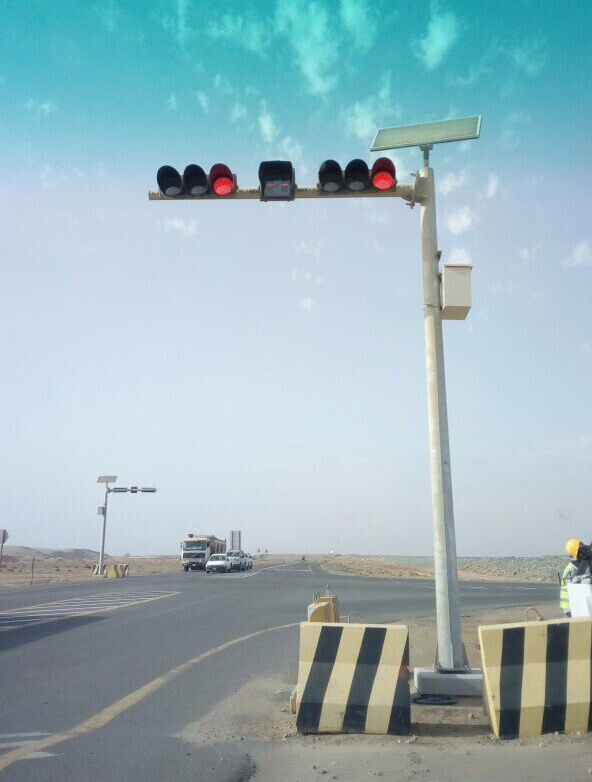

Project
Download

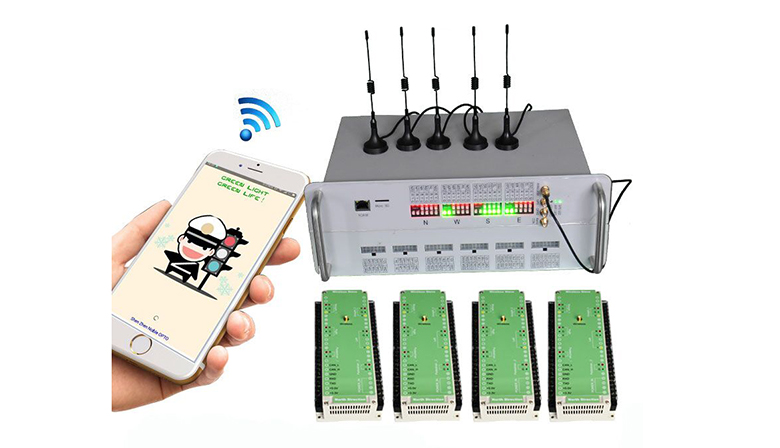

- Wifi communication between controller with handheld
- Control by phone App, its convenient for program and debugging on the site
- GPS for real time synchronous. make green wave function come ture
- Google, Bing etc Map no need to update the map, support online map and offline map data
- Software traffic management control system with remote administration function, such as Junction off, Hurry call, Forced flashing etc
- Singal plans: Allowing 240 solution, 30 period time, 240 menu with 30 phase. Allowing week plan Allowing special day plan All red time, red extension etc
- Special menu: 240: Loop failure / 251: east&west: amber flashing, north&south: red flashing / 252: east&west: red flashing, no rth&south: amber flashing / 253: All red flashing / 254: Junction off / 255: All amber flashing
| Master | |
|---|---|
| Voltage | DC12V |
| Current | 200MA |
| Power | ≤3.5W |
| Working frequency | 433MHz(16channels) |
| Wireless communiction distance | <200m |
| Working temperature: | -20℃ - 60℃ |
| Working humidity | <95% |
| IP rate | IP54 |
| Net weight | 3.7kg |
| Gross weight | 4.6kg |
| Carton size | 4200mm*3000mm*3500mm |
| Slave | |
|---|---|
| Voltage | DC12V |
| Current | 160MA |
| Power | ≤3.5W |
| Working frequency | 433MHz(16channels) |
| Wireless communiction distance | <200m |
| Working temperature: | -20℃ - 60℃ |
| Working humidity | <95% |
| IP rate | IP54 |
| Net weight | 2.4kg |
| Gross weight | 3.4kg |
| Carton size | 4000mm*2800mm*1850mm |
