Energy-saving 1 meter length traffic light

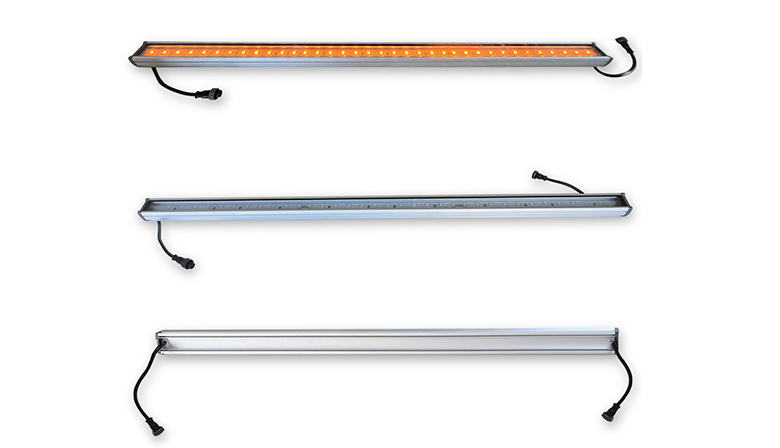

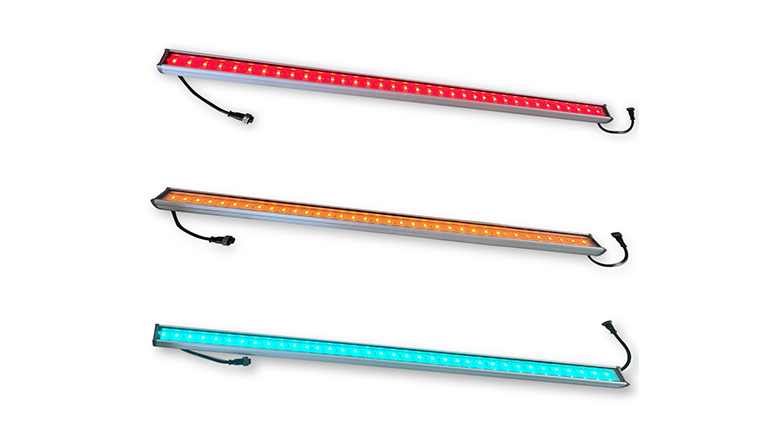

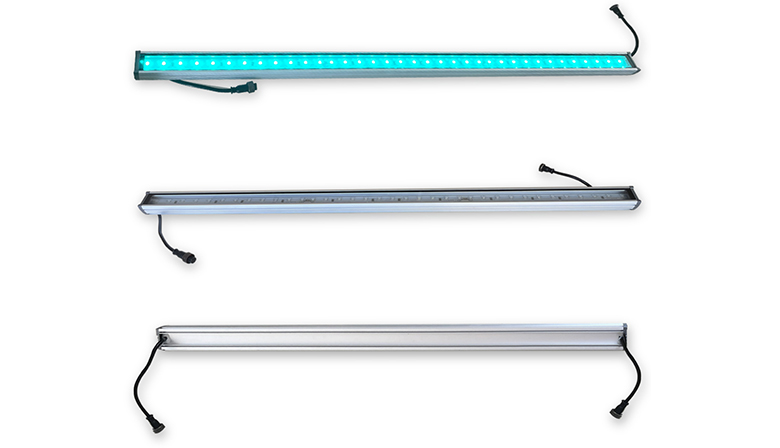

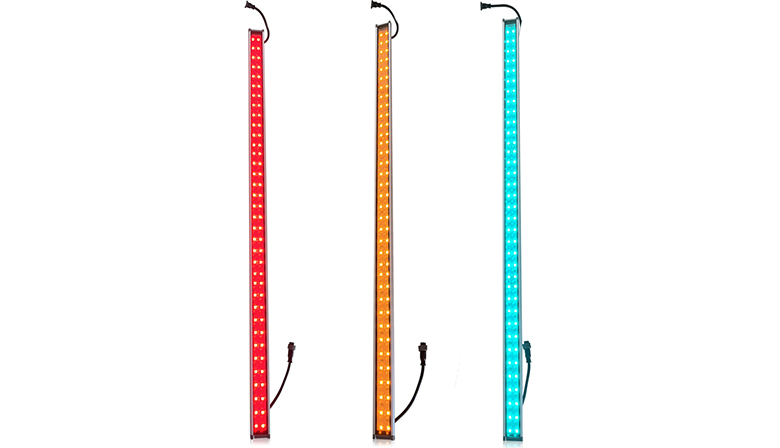

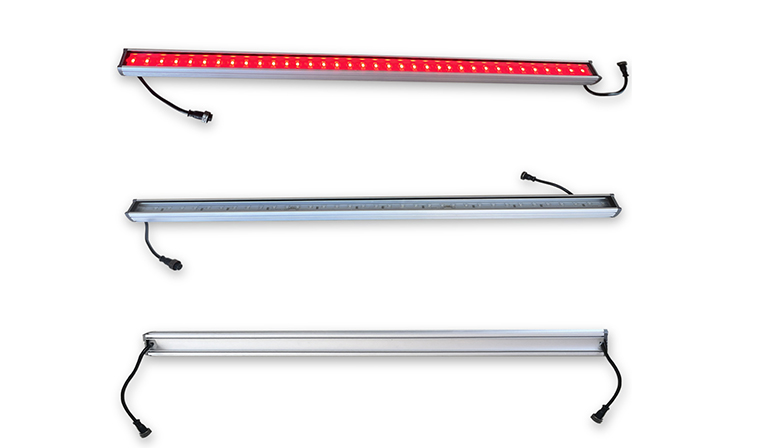

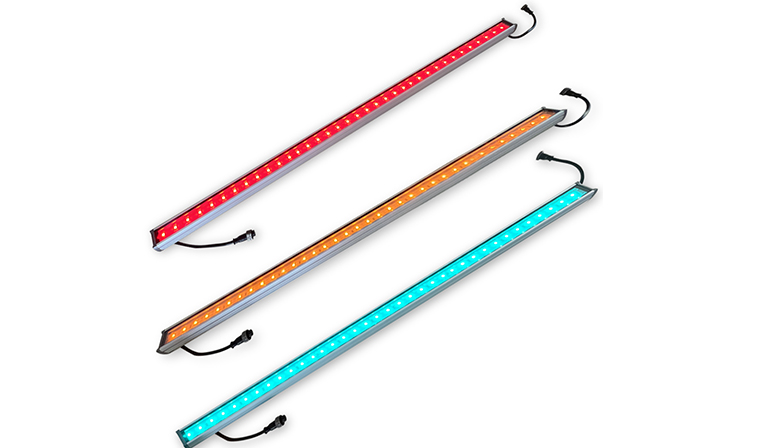

( 1Year Warranty 1 meter length traffic light)In order to solve the problem of small coverage of traffic lights at intersections, our company developed a 1-meter red, yellow and green light bar. The light bar and the signal light are displayed simultaneously, which not only increases the coverage area of the signal light, but also adds to the beauty of urban roads. The light strip adopts a streamlined design, is lightweight and easy to install, and has been well received by customers。.
Advantage
1.Housing: It adopts self-made mold and aluminum stretching process. Compared with iron and plastic shells, it is more rust resistant, corrosion-resistant, UV-resistant, and more suitable for harsh environments.
2.Glass Mask:The glass mask uses a highstrength tempered glass light transmitting panel and is sealed with a structurally stable and flexible silicone glue. It has high strength, high hardness, high pressure resistance, high light transmittance, and strong collision resistance.
3. LED Lamps:Self-developed LED lamp beads, based on the principle of optical refraction, emit light uniformly without glare. The reflection of light through the mirror can increase the refractive index and make the space brighter

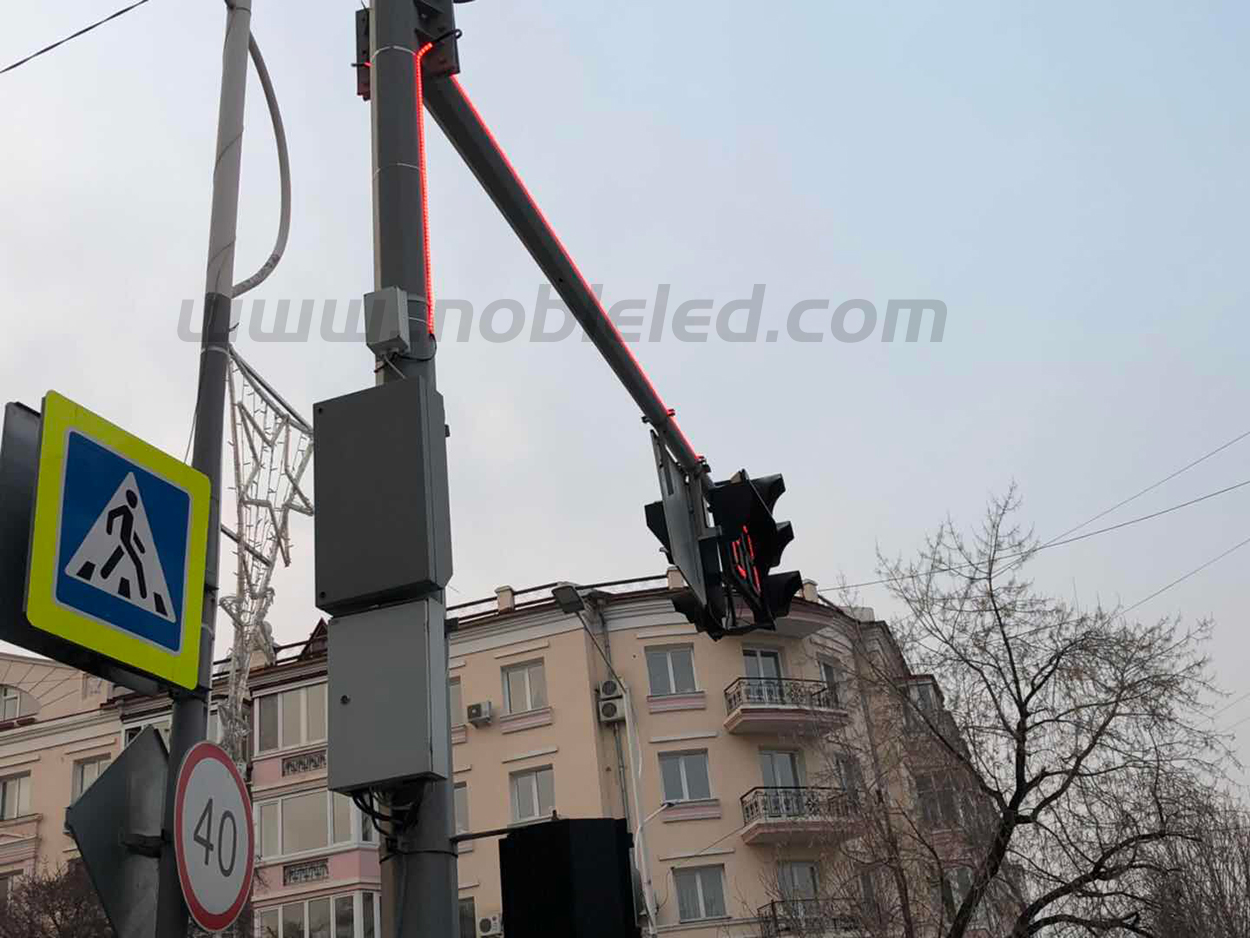

4. Features:The length of the product is 1 meter. It can be spliced freely on site according to the actual length of the signal light pole.

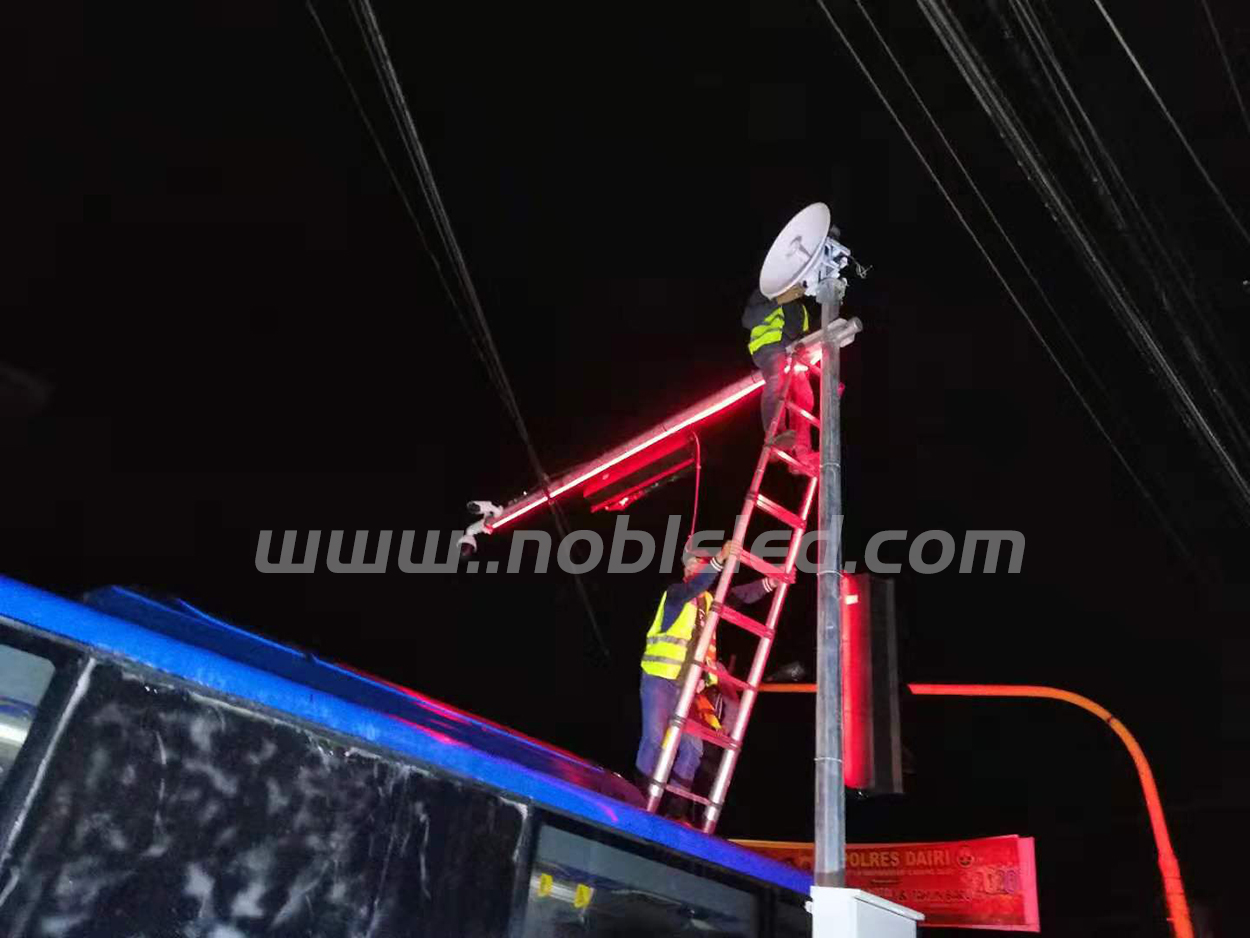

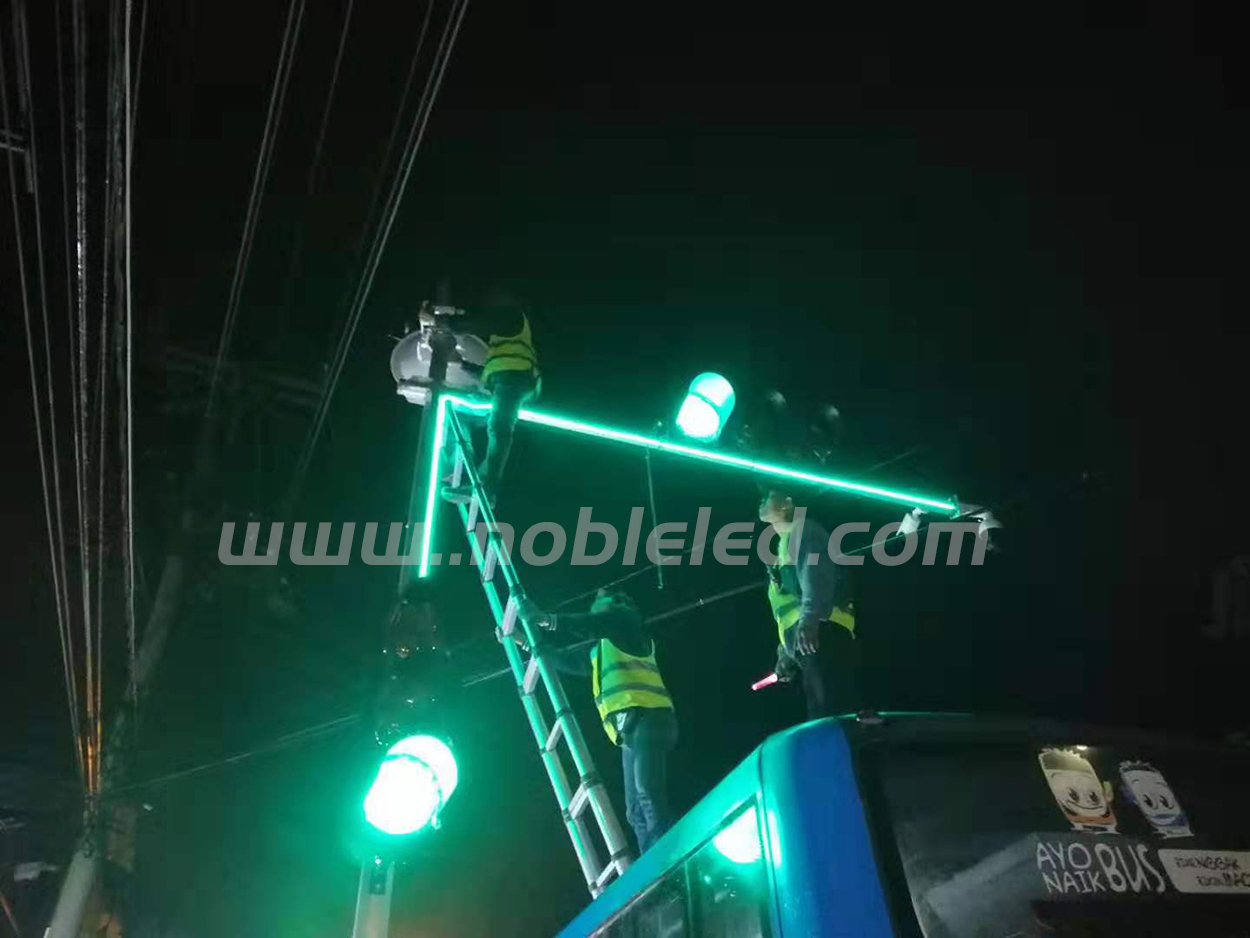

5.Installation:It is installed and fixed with a hoop, which is convenient, quick and time-saving.
6.Increased visibility at high incident intersections
Product feature:
Working voltage | DC24V |
Power consumption | 7W |
Ambient temperature | -40--60°C |
Working humidity | 10% to 95% RH (no condensation) |
LED lights | SMD5050 |
LED Quantity | 72pcs |
Housing | Stretched Aluminum + Tempered Glass |
Dimension | 1007*43.5*30MM |
Visual Distance | >>500M |
Visible distance | 300 meters |
Connection | Connected via aviation connector |
Installation method | Hug hoop |
Wavelengthh | Red:625±5nm, yellow:590±5nm, green:502±5nm |
Life span | >1000000 hours |
