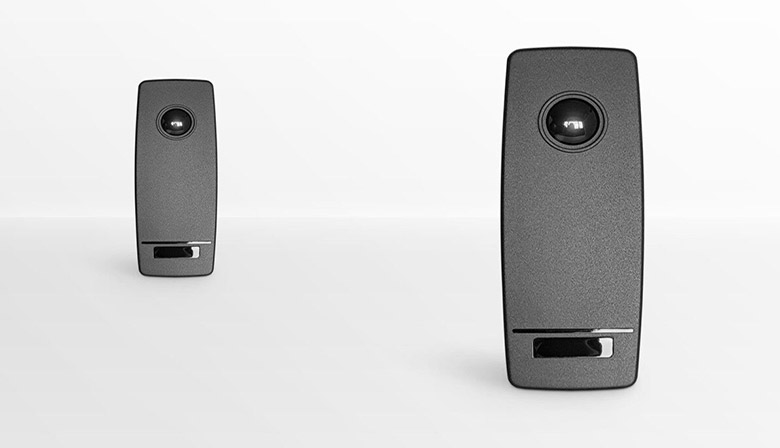

WIS-30 infrared gate safety beam with a wireless transmitter and it makes short work of achieving a safe automation system for even the most challenging of installations. With a wireless transmitter there’s no need to tunnel under the driveway. Simply align, More convenient and safe for door automation!

Main features:
The transmitter is wireless and battery-operated saving time and money.

2. 30 meters operating range – ideal for almost any entrance gate.

3. Fully ant-proof and weather-resistant enclosure for greater reliability.

4. Transmitter provides audible feedback for easy setup and battery-low indication.

5. Low power consumption throughout the system for greater efficiency.

6. Compatible with Intruder-detection Alarms for enhanced perimeter security.

7. Quick, easy installation with built-in laser beam alignment system.


Why choose our WIS-30?
Low power consumption.

The wireless transmitter photocell requires only two AA batteries (not included in the kit) two years of reliable operation. Low current-draw throughout the system means greater efficiency and a longer battery life, so you’ll have reliable automated gate safety for years to come.

2. Highly cost-effective.

One can’t put a price on safety - but you’ll be happy to know that WIS-30 photocells deliver a highly cost-effective detection solution. With these photocells installed, your gate won’t break your car and it won’t break the bank either!

3. The WIS-30 photocells are compatible with supply voltages from 12V to 30V DC. These versatile beams can be used on almost any gate or access automation equipment found in the market.

4. Long-distance performer
Our wireless safety photocells with a 30 metre operating range, WIS-30 is suitable for even very wide entrances. No matter how big the entrance, WIS-30 is an ideal for virtually any entrance gate.

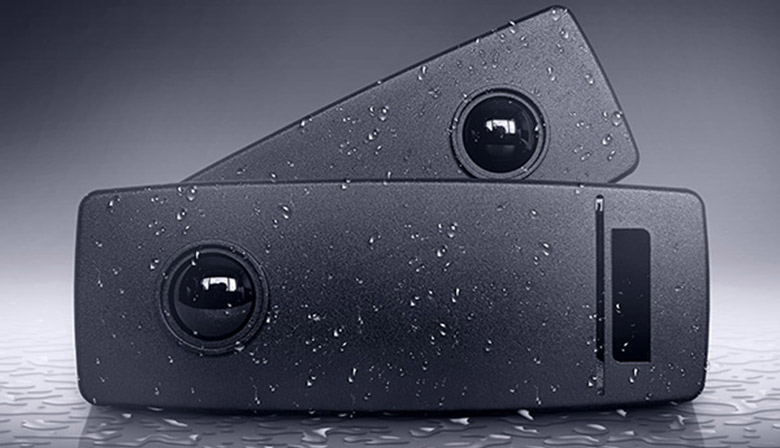

5. Fully weatherproof enclosure

WIS-30 photocells fully weatherproof enclosure ensures that the electronics will never bear the brunt of the weather

6.Suitable for universal installations.
Automatic sliding gate, swing gate, garage door, pedestrian door, industrial door, Boom Gates, Alarm System, warehouse monitoring etc. No more cutting driveways to run cables required, perfect to retro fit on existing installations.

Power Supply Transmitter

2 x AA Alkaline Batteries (Supplied) Only replace with alkaline batteries; do not use rechargeable batteries with this product


12 - 24V AC 12 - 30V DC

Receiver Power Consumption

30mA @ 12V DC

Transmitter Battery Life

Minimum 2 years

Battery Low Indication

Audible Beep

Response time


Specified Operating Distance



Automatic – 1m² @ 10m (circular area - assumes parallel surface)

Output Contact

Fail-safe, N/C and N/O, potential free contact

Output Contact Rating

3A @ 30V DC Non-inductive

Operating Temperature

-20°C - +60°C

Operating Humidity

0 - 90° Non-condensing

Degree of Protection

IP65 with rubber

Housing Material



51(L)*135(W)* 32(H)mm

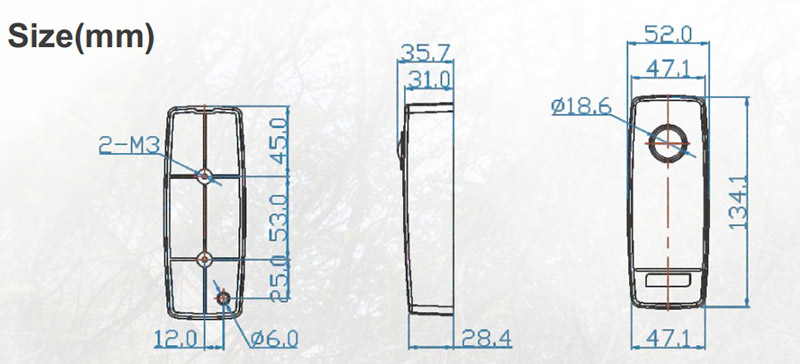

 Infrared photocell sensor install size


 Infrared photocell sensor install size

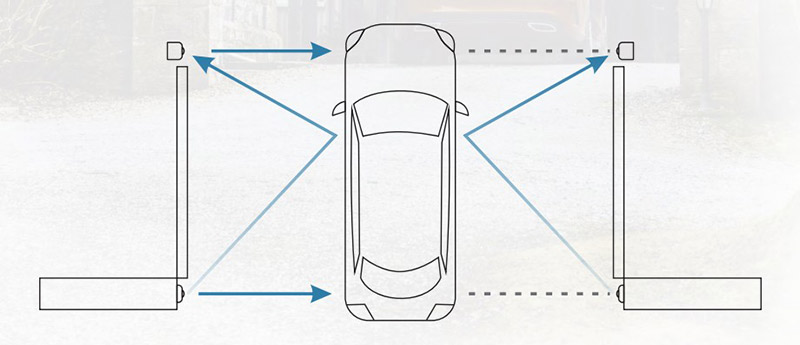

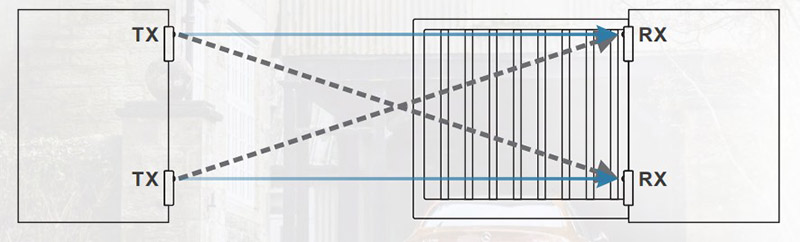

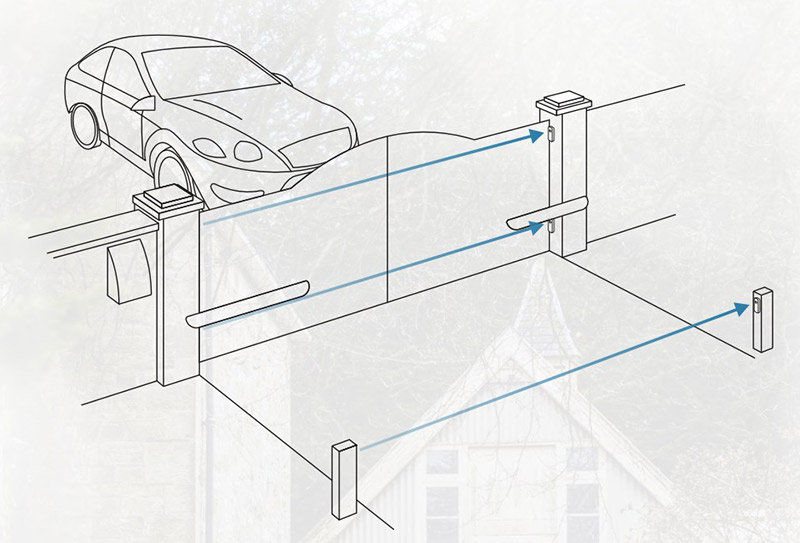

infrared sensor project

Infrared photocell sensor project

Infrared photocell sensor project
