Solar power traffic solution

Solar intersection

This solution adopts Noble OPTO second-generation wireless controller. Because it adopts 433M wireless communication and solar power supply, it is green and energy-saving. It does not need to break the road to install cables. It is convenient for construction. It is a good choose when intersection install needs high labor cost and inconvenient power supply.

The system consists of the following

Crossroads traffic control system junction display

Normal project：

No.	Product Picture	Model No.	Model Name	Quantity (pcs)
1		NBTSC-100 (2nd generation traffic management)	Solar power intelligent traffic signal controller	1sets
2		NBJD313-3	300mm led traffic light	8sets
3		NBDJS412-RYG	400mm countdown time red + yellow + green	4sets
4		NBRX311-RG + DJS311-RG	300mm countdown timer red &green + pedestrian traffic light red &green	8sets
5		NBSB-150AH	150AH 12VDC Solar battery	4pcs
6		NBSP-150W	150W 12VDC Solar panel	4pcs
7		NBSC-01	Solar charge	4pcs
8		NBCB-N2	Wireless solar Traffic signal controller cabinet	4pcs

Function Pedestrian button, loop detector：

No.	Product Picture	Model No.	Model Name	Quantity (pcs)
1		NBTSC-100 (2nd generation traffic management)	Solar power intelligent traffic signal controller	1sets
2		NBJD313-3	300mm led traffic light	8sets
3		NBRX312F-2	300mm pedestrian traffic light red &green	8sets
4		NBCB-N2	Wireless solar Traffic signal controller cabinet	4pcs
5		NBSB-150AH	150AH 12VDC Solar battery	4pcs
6		NBSP-150W	150W 12VDC Solar panel	4pcs
7		NBSC-01	Solar charge	4pcs
8		NBPPB-2	pedestrian push button	8pcs
9		NBPPB-8WR	pedestrian push button signal receiver	4pcs
10		NBTCD-8	Traffic Camera Detector	4pcs

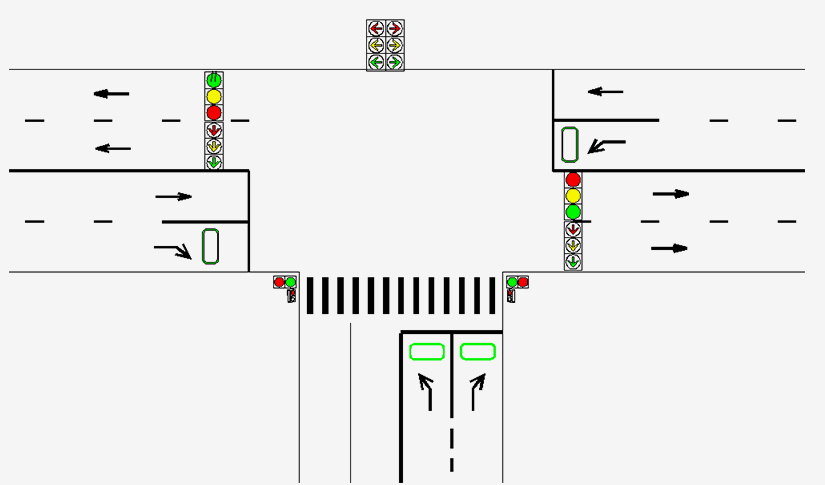

T-Junction application

This scheme is a general configuration of a T-junction. The car detector is optional. The lights can be full-ball light and arrow lights.The controller can choose the second-generation solar power controller or low-voltage controller.

Crossroads traffic control system junction display

T-Junction wireless controller system

No.	Product Picture	Model No.	Model Name	Quantity (pcs)
1		NBTSC-100 (2nd generation traffic management)	Solar power intelligent traffic signal controller	1sets
2		NBJD313-3	300mm led traffic light	6sets
3		NBDJS412-RYG	400mm countdown time red+ yellow+green	3sets
4		NBRX311-RG+DJS311-RG	300mm countdown timer red & green + pedestrian traffic light red & green	6sets
5		NBSB-150AH	150AH 12VDC Solar battery	3pcs
6		NBSP-150W	150W 12VDC Solar panel	3pcs
7		NBSC-01	Solar charge	3pcs
8		NBCB-N2	Wireless solar Traffic signal controller cabinet	3pcs

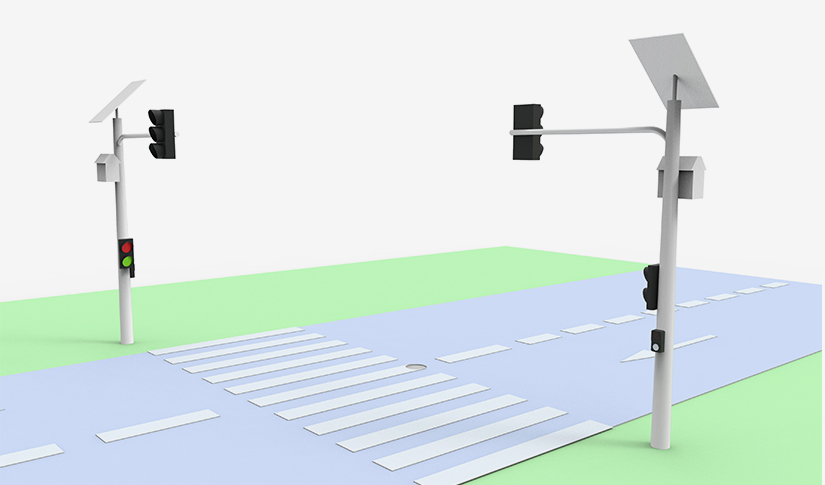

One-way intersection

Most of the One-way intersections are found in schools, hospitals and other places. It is only necessary to control the trafficflow in both directions and the pedestrians in both directions. You can use the cycle mode or install the pedestrian crossing button (optional) to realize the pedestrian mode and enhance road driving. Efficiency and pedestrian safety.

Crossroads traffic control system junction display

Normal project：

No.	Product Picture	Model No.	Model Name	Quantity (pcs)
1		NBTSC-100 (2nd generation traffic management)	Solar power intelligent traffic signal controller	1sets
2		NBJD313-3	300mm led traffic light	4sets
3		NBDJS412-RYG	400mm countdown time red+ yellow+green	2sets
4		NBRX311-RG+DJS311-RG	300mm countdown timer red &green +pedestrian traffic light red &green	4sets
5		NBSB-150AH	150AH 12VDC Solar battery	2pcs
6		NBSP-150W	150W 12VDC Solar panel	2pcs
7		NBSC-01	Solar charge	2pcs
8		NBCB-N2	Wireless solar Traffic signal controller cabinet	2pcs
