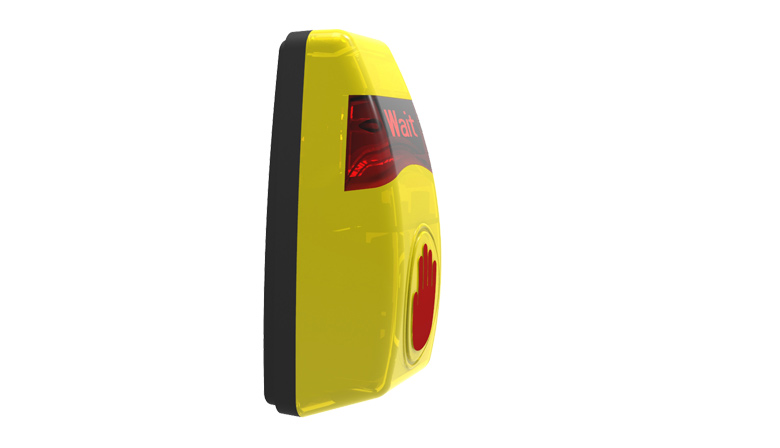

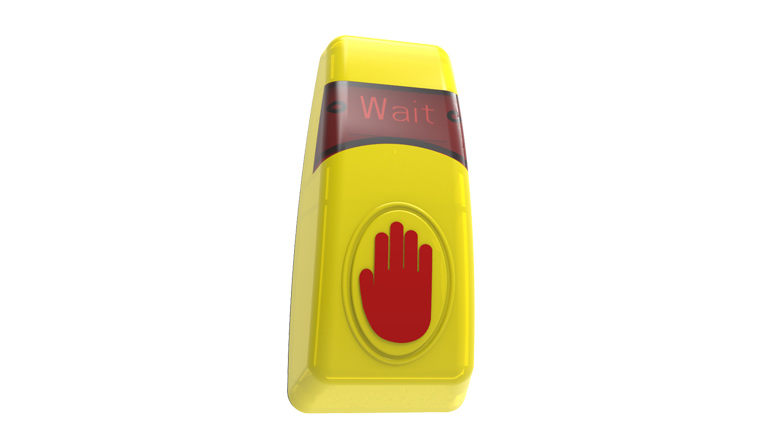

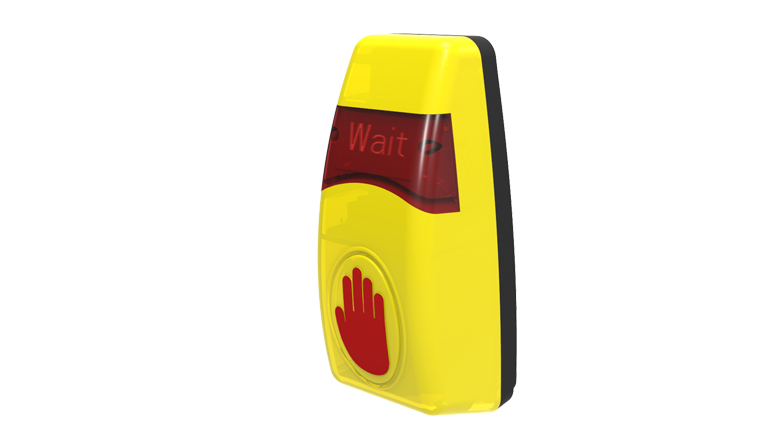

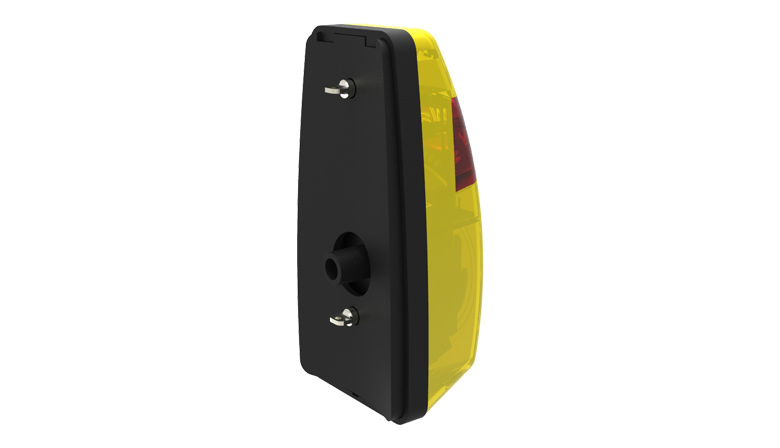

PUSH BUTTONONe deSigN - MUl  TiPle FeATUReS

The push buttons TOUCH SOUND, TOUCH SOUND TSE and TOUCH not only meet the needs of road users, they can also be adapted to suit the individual requirements of intersections in a city. They help pedestrians, cyclists and people with visual impairments to cross light-controlled road crossings safely.

Regardless of the various features, the design of the push button always remains the same – one design for the whole city.Due to increasing traffic volume it’s getting more and more important to protect pedestrians and cyclists at intersections. Therefore NOBLE OPTO designed its own push buttons with highly visible LED-displays and reliable information for crossing the street safely.

Item:
PTB-20-V9   (12-40VADC)
PTB-20-V12 (100-240VAC)
PTB-20SV9 with sound(12-40VADC)
PTB-20SV12 with sound(100-240VAC)


Technical Information:
Polycarbonate Makrolon.
■Colour yellow(RAL1007)with a red cap,
othercolours are available.
■Protective class II under DIN EN 61140.
■ProtectivetypeIP 65 under DIN EN 60529.
■Voltage Options:100-240VAC 12-24VDC

Key Benefits:
■modular construction allows adaption to all kinds of intersections
■one design for the whole city, independent of different functions of each intersection
■ no movable parts parts that can be manipulated
■resistant against vandalism due to a strong polycarbonate body with an integrated metal core profile
■ laterally applied tactile symbols for describing the crossing for the visually impaired
■localisation of the push button due to acoustic and optical position signal (LEDring)
■ meets all the requirements of current guidelines and regulations (RiLSA, DIN local regulations 32981, DIN VDE 0832, EN 50293) – tested by TüV Rheinland



Pedestrian Touch Button
