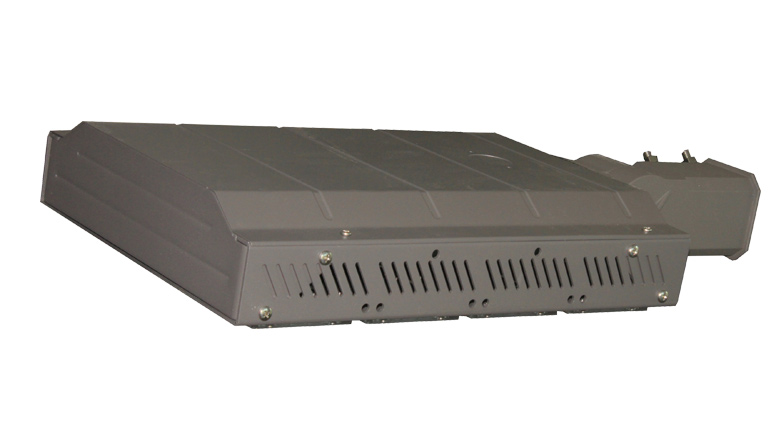

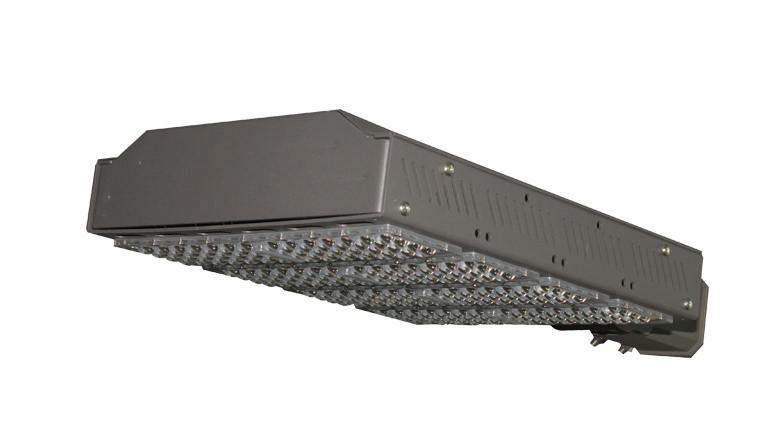

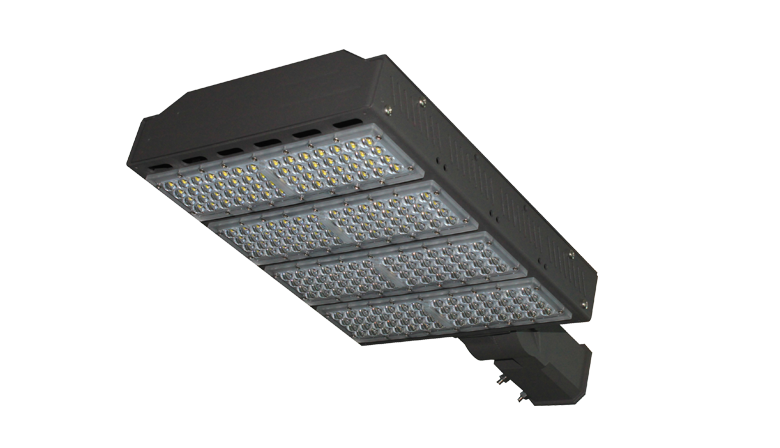

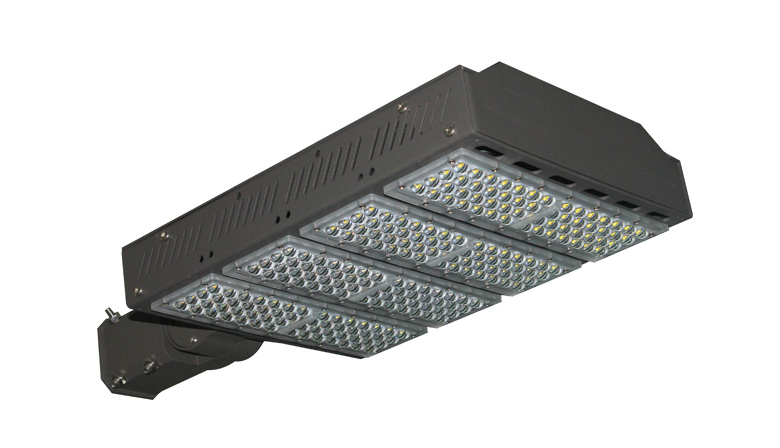

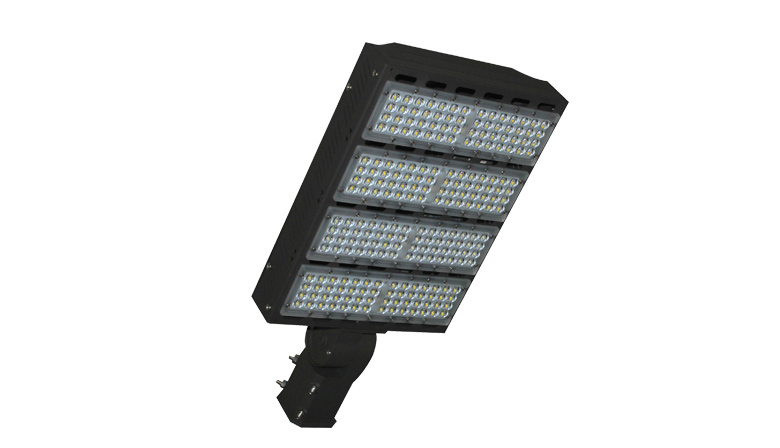

Home > Our Product > LED street light > LED main power street light > SL200-1C030C
Features/Benefits Specifications Project Download
  • External fashion beautiful, angular, simple and tough
  • Light weight, small size, reduce transportation costs and maintenance of capital
  • Protection level IP66
  • Imported high-brightness light source, high luminous efficiency
  • 1060 aluminum cylinder orange powder, powder cross process, breathable Feng sent design, enhance the cooling effect of lamps
  • Intelligent adjustable power, demon lighting time
  • Support 50-60m m light repentance, apply more widely
NO. Title Description
1 Name SL-1C030C Series Street Light
2 Model SL150 / 200 / 250-1C030C
3 Power 150W / 200W / 250W
4 Input Voltage AC100-277V
5 Lighting efficacy 126LM/W
6 Beam angle 75X140
7 Waterproof rate Ip66
8 LED QTY(pcs) 168/224/280
9 Total lumlnous flux 18900Lm / 25200Lm / 31500Lm
10 Chip model OSRAM 3030
11 Any way 24B7C / 32B7C / 40B7C
12 Installation height 6-8m
13 Pole diameter 62mm
14 Operating temperature -40℃ - 60℃
15 Warranty 5 years
16 Current(mA) 10000
