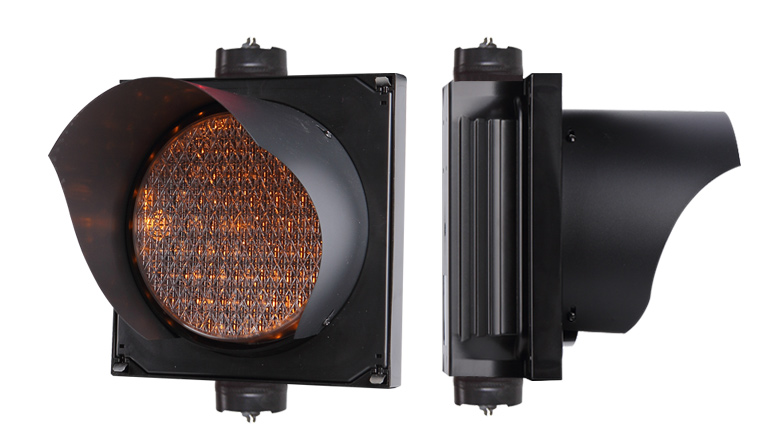

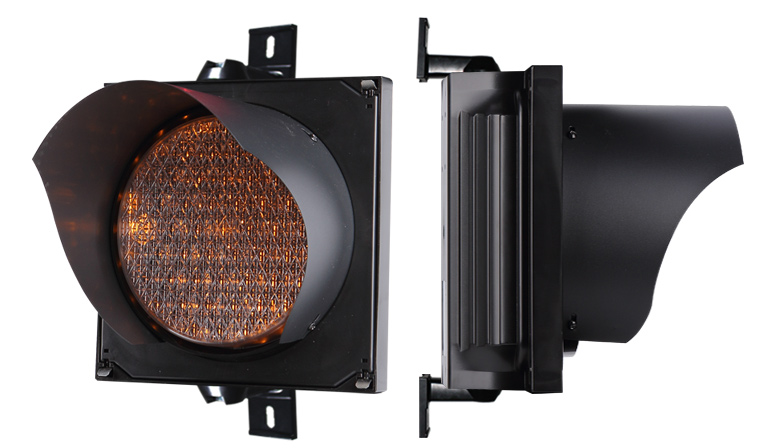

200mm yellow traffic signal light
200mm yellow traffic light
( 2 Years Warranty intelligent traffic lights )
Features/Benefits
Specifications
Project
Download
- Energy saving, long life
- Environmental adaptability
- Short switching times between different colors
- Variety of installation to fit for the different environments
- Reasonable structure, atmosphere, simple and beautiful appearance
- Strong protective properties (waterproof, dustproof, shock)
- Fast method using the mold assembly, maintenance and replacement parts quickly abnormalities
- Visual effects, color uniformity,far visual distance
| Moel: NBJD211F-Y | |
|---|---|
| Items | Parameters |
| Size | 200mm |
| Color | Yellow |
| LEDs (pcs) | 61 |
| Wavelength | 590±5 |
| Module shape | Round |
| Power consumption (W) | <7 |
| Housing material | PC ( UV-stabilized polycarbonate) |
| Voltage (V) | 12-24V DC 100-277V AC |
| Luminance (cd) | 800cd |
| Operating temperature (℃） | -30℃~+ 60 ℃ |
| Insulation resistance | ≥2M |
| Total harmonic distortion | <20% |
| IP rate |
IP65 |
200mm led traffic light project
