Traffic Control Solution Provider

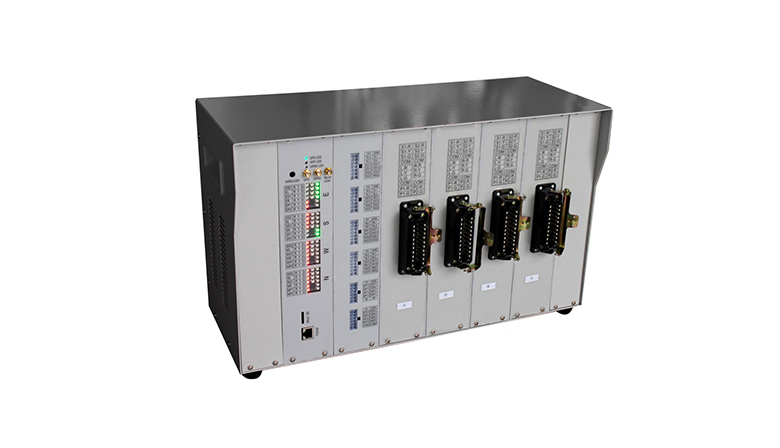

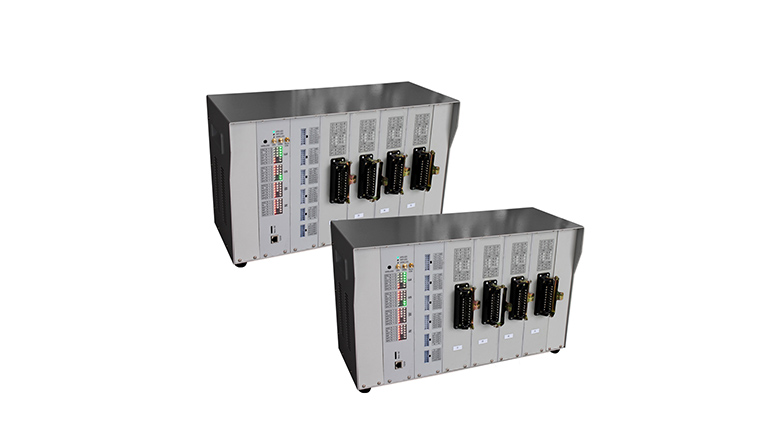

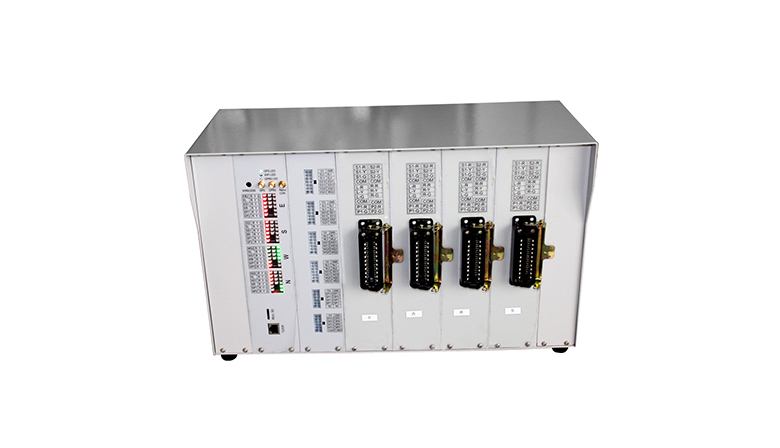

2nd generation controller system
Intelligent traffic light controller system
( 5 Years Warranty 2nd Generation controller system )
Features/Benefits
Specifications

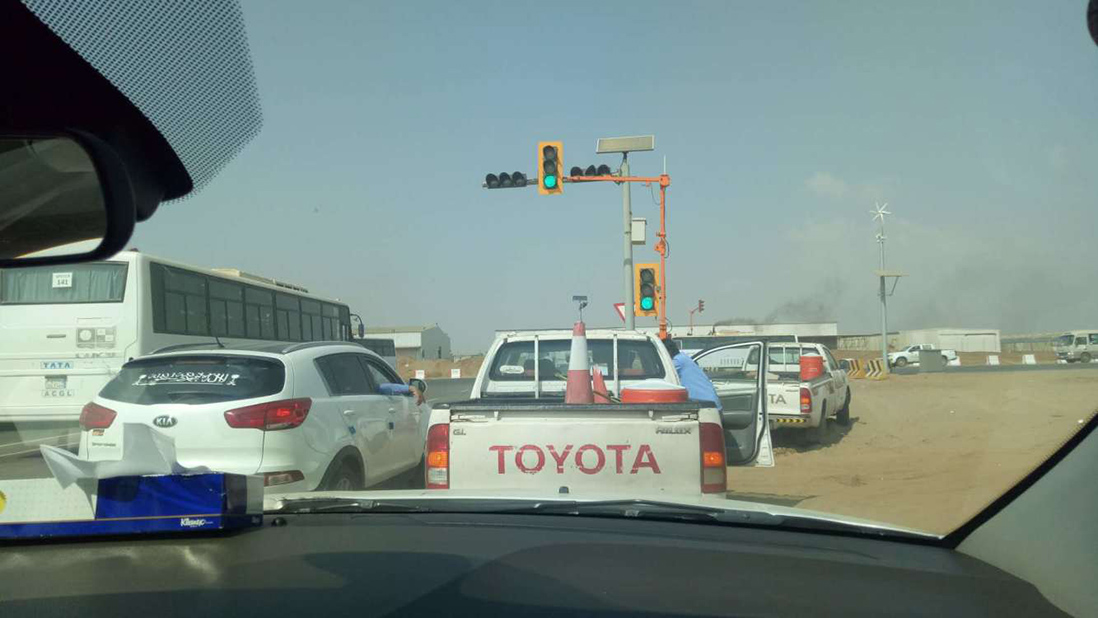

Project
Download
-
Mobile phone APP to remote control the controller by wifi
GPRS/Ethernet internet communicate to traffic management center control the controller by software. LAN, WLAN on TCP/IP.
- GPS Real-time clock for wireless sync available
- Technique of PWM to control the brightness of the light
- Green conflict setting and detection function
- Fuse protected driver output PSU with LED indicators Traffic Manual(force flashing mode) can work for you.
- Lamp faliure detect function, can detect the lamp short circiut, open circuit, output short/open circuit.
- Vehicle loop detect function Wireless pedestrian push button 32 digits ARM CPU.
-
1 master and 4 slave controller work together by wireless
1%-100% energy saving adjustment, automatic brightness control (time,voltage)
- Fault diagnose function for open or close.
| 2nd generation controller system | ||
|---|---|---|
| Green flash time | 0~59s | |
| Green Flash Frequency | 0.5(Hz) | |
| Yellow Flash Frequency | 0.5(Hz) | |
| Power Voltage | 85-265VAC | |
| Current | 5A | |
| Clock Precision | 0.1s | |
| With PFC+PWM | >0.8 | |
| Power Consumption | Master | 3.6W |
| Slave | 3W | |
| Loaded Power | ≤1,100V / output | |
| Ambient RH | 95%, Non-condensing at 40 degree C | |
| Working Environment | 0 to 55 degree C | |
