Home > Our Product > LED intelligent traffic signal light series > High flux traffic signal > 100mm High Power LED Traffic Light
Features/Benefits Specifications Project Download
  • 5 years warranty
  • High flux LED
  •  Component from Japan/USA
  •  Meet CE, standard
  •  PF>0.9, THD<15
  • Super fast turn on, super fast turn off, time less 75ms.
  •  Engery saving
  •  Working temperature environment:-40℃~+ 70℃
  • LED-based traffic signal modules
  •  Uniform signal appearance / no LED dots visible
  • Custom-made symbol masks on request
  •  Design minimizes sun phantom effects.
  • Easy to install into existing signal enclosure.

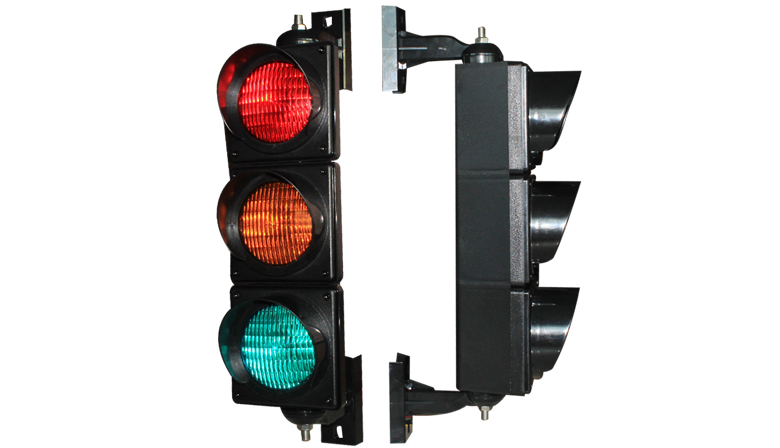

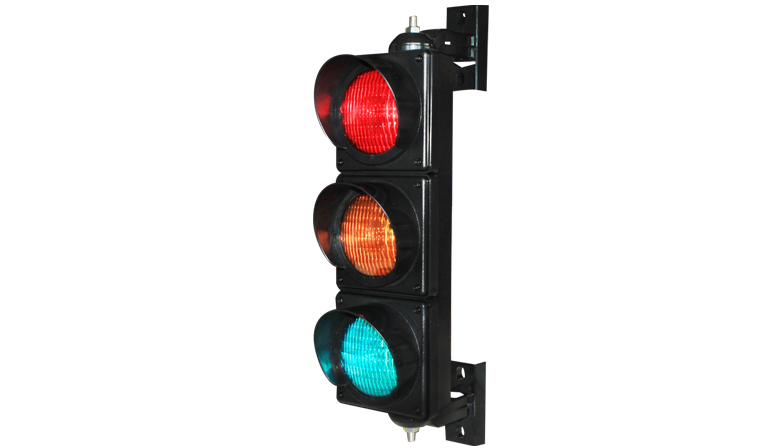

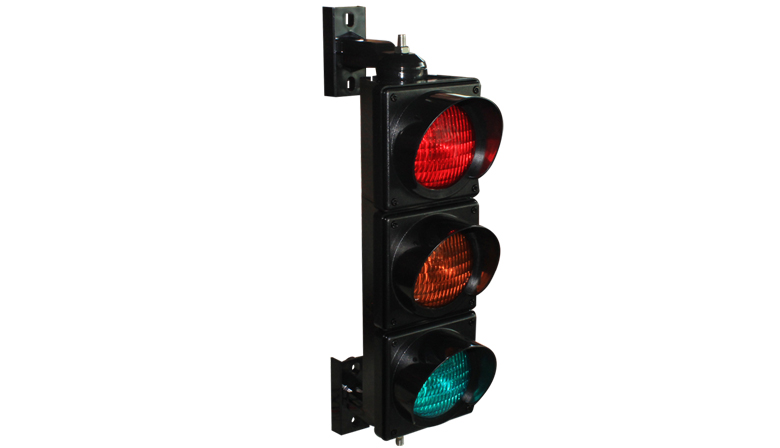

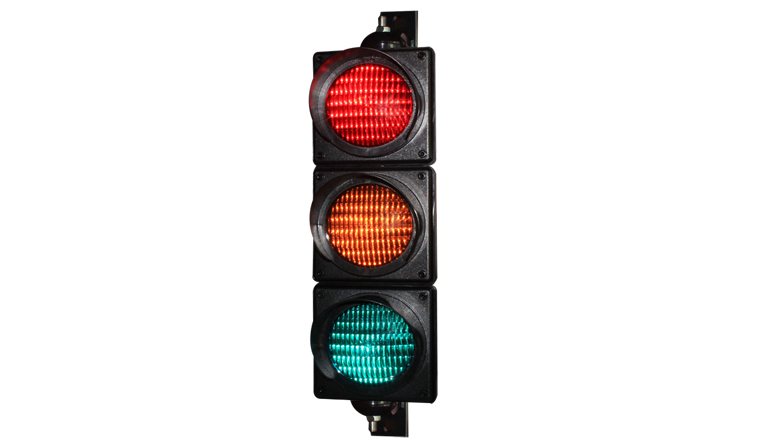

Items  NBVB113HP-V1/V2/V9   100mm High Power LED Traffic Light
Size 100mm(4’) 100mm(4’) 100mm(4’)
Color Red Amber Green
LEDs (pcs) 1 1 1
Luminance (cd) >100 >100 >100
Module shape Round Round Round
Power consumption (W) >5 >5 >5
Typical Dominant Wavelength(mm) 625 590 502
Housing material PC ( UV-stabilized polycarbonate)
Cover Shape  tinted Cobweb len
Voltage (V) 120VAC  or 230VAC or 12-24V DC
Power Factor >0.9
Operating temperature (℃) -40℃~+ 70 ℃
Insulation resistance ≥2M
Total harmonic distortion <20%
IP rate IP65

high power traffic light
